High Torque 35.8mm 12v 24 volt plastic end cap household electric motors
Model: RS-540SA/RS-550SA
Tytical Application:
Vacuum Cleaner
Precision Instruments
Household Appliances
Power Tools
Slot car
Features:
Shaft Material: Stainless Steel
Carbon brush
Oil-impregnated bearing or ball bearing
Output power 5-200W
35.8mm diameter
Metal end cap
Encoder available
Flux ring available
Cooling fan available
3 Slots or 5 Slots Rotor

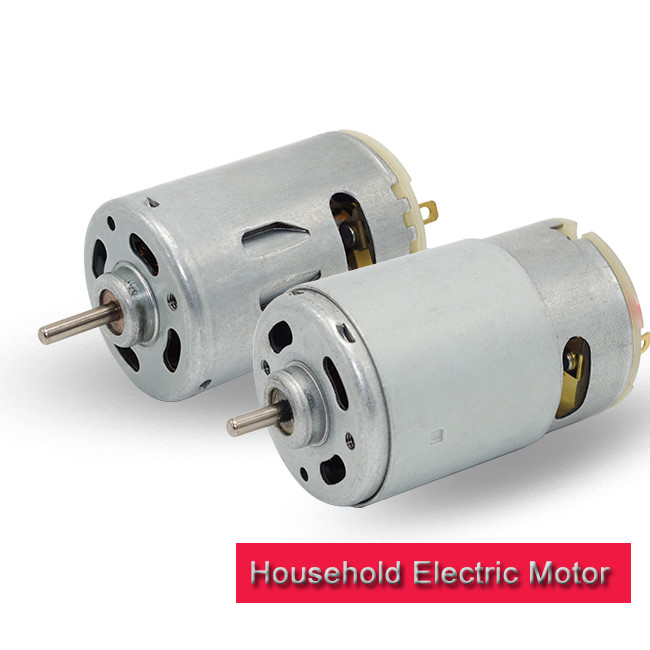

Product Showcase:
Outline Drawing:
Motor Performance:
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | mN.m | W | g.cm | mN.m | A |
| RS-540PA-23195 | 5.0~13.0 | 12.0 | 3500 | 0.12 | 2900 | 0.58 | 151.1 | 14.83 | 4.49 | 881 | 86.46 | 2.80 |
| RS-545SA-29110R | 5.0~13.0 | 12.0 | 6300 | 0.19 | 5377 | 1.11 | 165.4 | 16.23 | 9.12 | 1129 | 110.79 | 6.45 |
| RS-545SA-3155R | 5.0~24.0 | 24.0 | 14000 | 0.2 | 12400 | 1.60 | 215 | 21.10 | 27.34 | 1935 | 189.89 | 12.80 |
| RS-545PA-5022R | 3.0~18.0 | 18.0 | 28800 | 0.89 | 24300 | 9.50 | 460 | 45.14 | 114.65 | 2950 | 289.50 | 51.50 |
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | mN.m | W | g.cm | mN.m | A |
| RS-550SA-7525R | 5.0~13.0 | 12.0 | 21000 | 1.4 | 18193 | 9.07 | 417.7 | 40.99 | 77.94 | 3125 | 306.67 | 58.80 |
| RS-550SA-3070 | 5.0~25.0 | 24.0 | 9500 | 0.22 | 8193 | 1.38 | 283.3 | 27.80 | 23.81 | 2060 | 202.16 | 8.65 |
| RS-555SA-2285R | 5.0~25.0 | 24.0 | 6250 | 0.12 | 5432 | 1.02 | 240 | 23.55 | 13.37 | 1797 | 176.35 | 5.05 |
| RS-555PA-2596R | 5.0~13.0 | 12.0 | 3000 | 0.12 | 2510 | 0.62 | 188 | 18.45 | 4.84 | 1156 | 113.44 | 3.18 |
The Shaft and the motor performance such as voltage and speed can be custom made.
PLS download PDF spec for referrence.
RS-540SA.pdf
RS-550SA.pdf
Competitive Advantages:
10 years in manufacturing dc motor and gearbox.
Customization available.
Reasonable price with good quality product.
High Product performance: Low noise, High efficiency, long lifespan
Prompt Reply and Short Lead time
Good Service and Nice Communication.
Small orders accepted.
Sample available.
100% inspection during the production.
FAQ
Q: Can you make a motor with custom specifications?
A: Definitely yes, that’s the aim we work for, we provide customized motor with valued add service for our clients.
Q: What's the deliverly time of sample and the cargo?
A: For regular specification, it needs about 3-5 working days for samples, and 15-20 working days for the cargo; For customized specification, it needs about 7-10 working days for samples, 25-30 working days for the cargo.
Q: What is your MOQ?
A: Generally, the MOQ is 1000 pieces for our motors. But we can support you with small quantity for the first trial order .
Q: Do you have motors in stocks?
A: No, all motors are made according to the customers' requirements, so it is difficult for us to make in stocks.
