High Torque 35.8mm 12v 24v dc household electric motors with metal brush RS-5 series motor for vacuum cleaner
Model: RS-540SH/RS-550SH
Tytical Application:
Vacuum Cleaner
Precision Instruments
Household Appliances
Power Tools
Slot car
Features:
Shaft Material: Stainless Steel
Carbon brush
Oil-impregnated bearing or ball bearing
Output power 5-200W
35.8mm diameter
Metal end cap
Encoder available
Flux ring available
Cooling fan available
3 Slots or 5 Slots Rotor

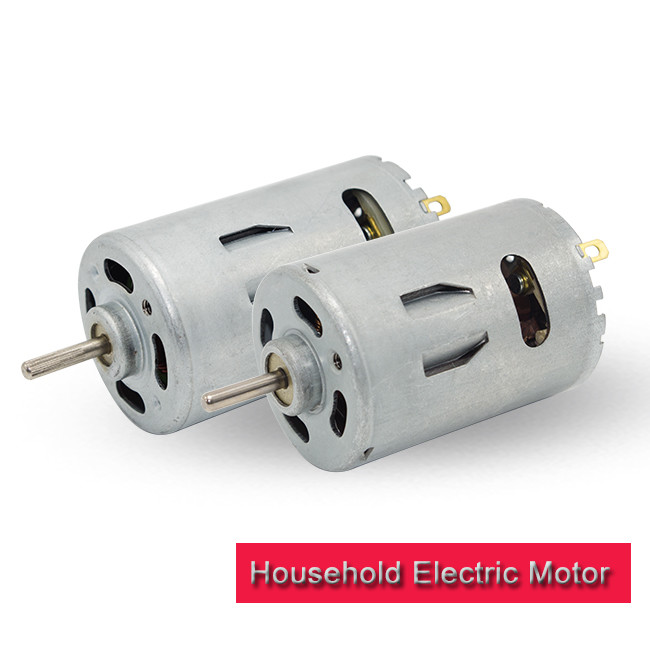

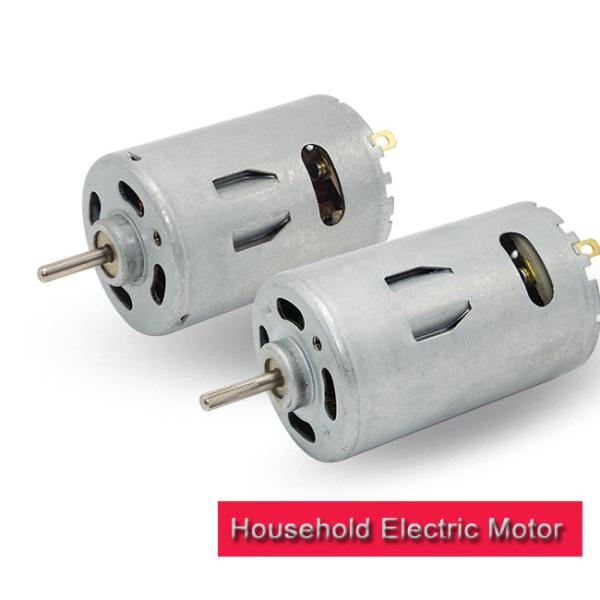

Product Showcase:

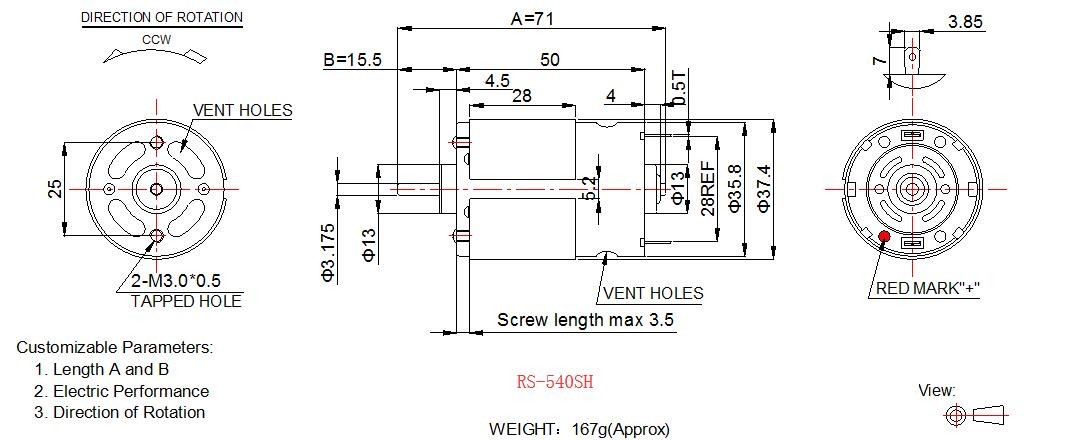

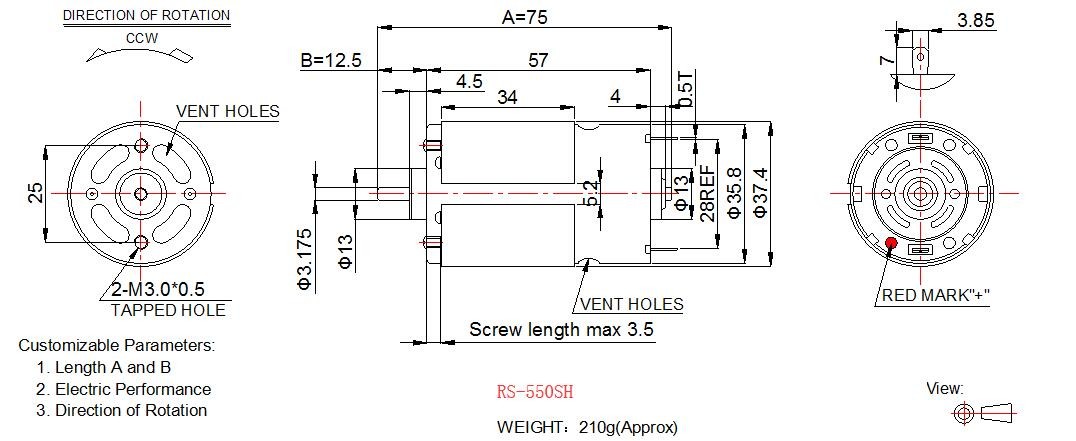

Outline Drawing:

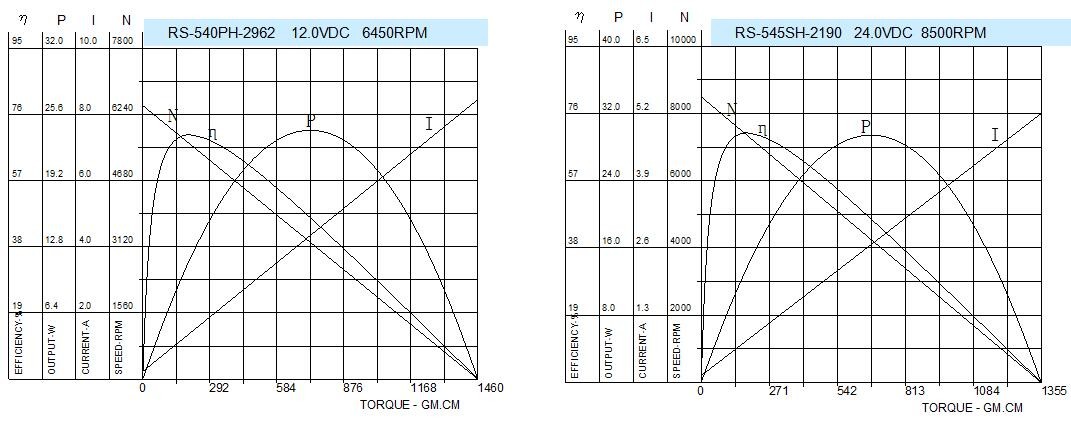

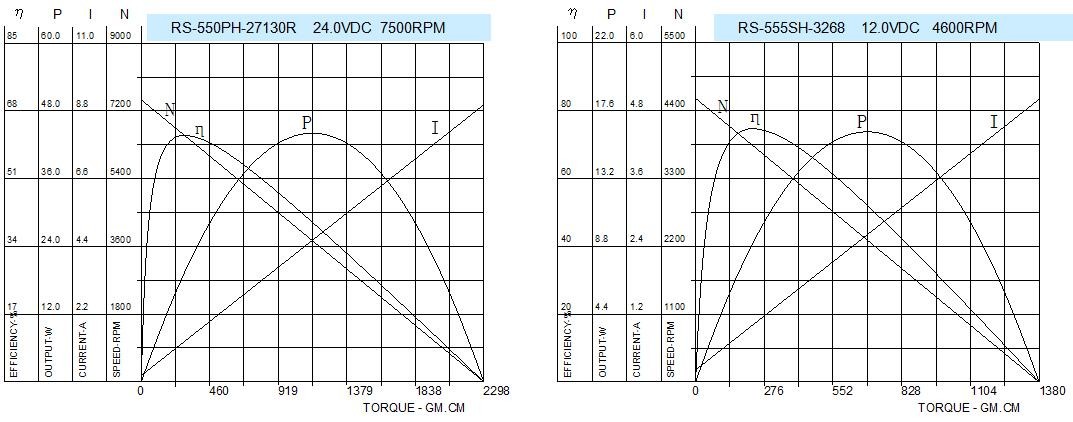

Motor Performance:
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | mN.m | W | g.cm | mN.m | A |
| RS-540PH-2962 | 5.0~13.0 | 12.0 | 6450 | 0.23 | 5537 | 1.39 | 207 | 20.31 | 11.76 | 1460 | 143.28 | 8.45 |
| RS-545SH-2190 | 6.0~25.0 | 24.0 | 8500 | 0.13 | 7340 | 0.82 | 185 | 18.16 | 13.93 | 1355 | 132.97 | 5.20 |
| RS-545PH-5025R | 5.0~20.0 | 18.0 | 25000 | 1.2 | 21530 | 7.44 | 409 | 40.14 | 90.32 | 2948 | 289.30 | 46.20 |
| RS-540PH-7028R | 5.0~13.0 | 12.0 | 28800 | 1.75 | 20270 | 14.00 | 550 | 53.97 | 114.34 | 4980 | 488.71 | 112.60 |
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | mN.m | W | g.cm | mN.m | A |
| RS-550PH-27130R | 5.0~25.0 | 24.0 | 7500 | 0.2 | 6527 | 1.34 | 298.1 | 29.25 | 19.96 | 2298 | 225.52 | 9.00 |
| RS-555SH-3268 | 5.0~13.0 | 12.0 | 4600 | 0.21 | 3818 | 1.03 | 234.7 | 23.03 | 9.19 | 1380 | 135.43 | 5.00 |
| RS-555PH-2763R | 5.0~25.0 | 24.0 | 7500 | 0.21 | 6460 | 1.30 | 332 | 32.58 | 22.00 | 2399 | 235.43 | 8.10 |
| RS-555H-6513RF | 5.0~13.0 | 12.0 | 18800 | 1.15 | 16800 | 9.88 | 502 | 49.26 | 86.50 | 4820 | 473.01 | 85.00 |
The Shaft and the motor performance such as voltage and speed can be custom made.
PLS download PDF spec for referrence.
RS-540SH.pdf
RS-550SH.pdf
Competitive Advantages:
Professional international sales team
Fast response within 24h
100% inspection during production
Customization available
Sample available
Small Trial order available
FAQ
Q: How to select a suitable motor?
A: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you have customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q: What's your payment term?
A: For all our new customers, we will need 40% deposite, 60% paid before shipment.
Q: When will you reply after got my inquiries?
A: We will response within 24 hours once get your inquires.
