High Quality 27.7mm 12v 24v micro dc motor metal end cap RS 360 380 390 household electric motors
Model: RS-360SA/RS-380SA/RS-390SA
Tytical Application:
Vacuum pump
Precision Instruments
Household Appliances
Electric tools
Features:
Shaft Material: Stainless Steel
Carbon brush
Oil-impregnated bearing or ball bearing
Output power 2-40W
27.7mm diameter
Plastic end cap
Operating temperature range: -10℃ to +50℃
Storage temperature range: -20℃ to +60℃

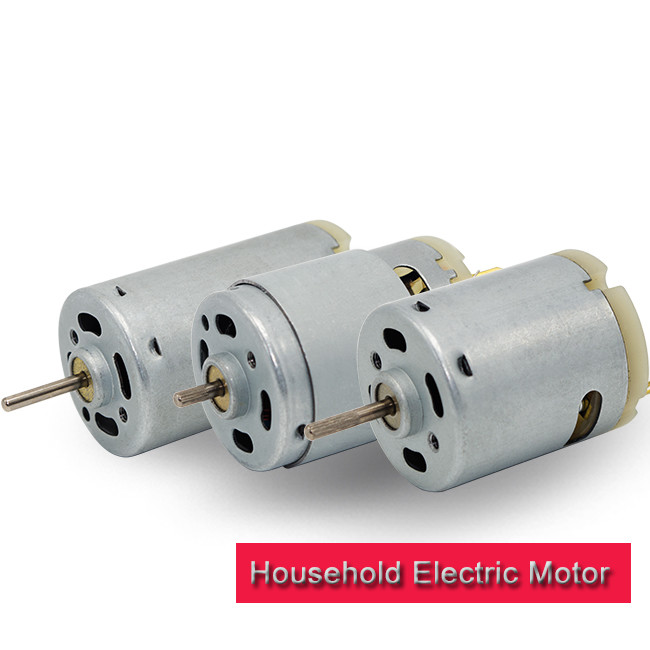

Product Showcase:

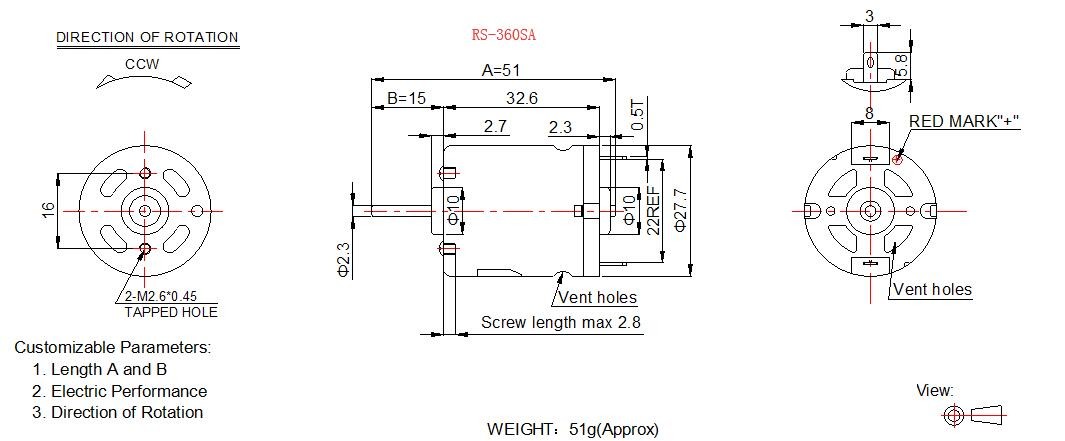

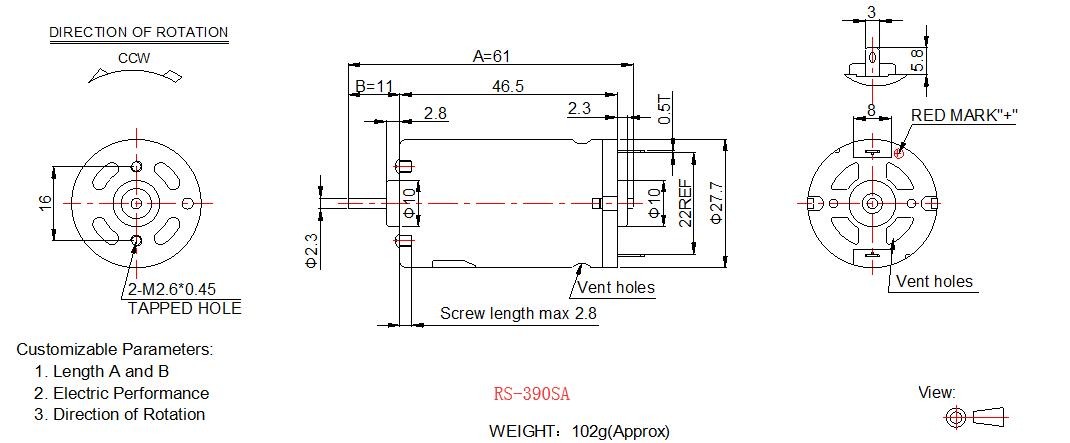

Outline Drawing:

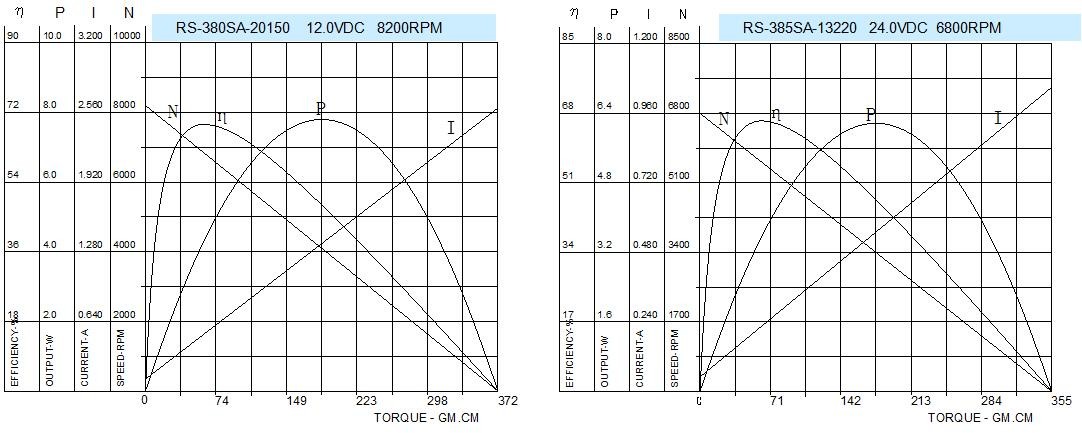

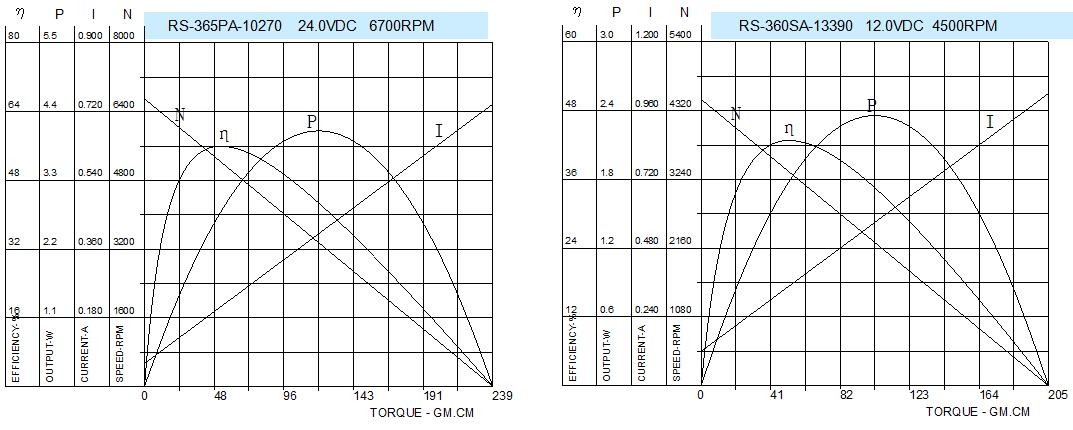

Motor Performance:
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | mN.m | W | g.cm | mN.m | A |
| RS-365PA-10270 | 6.0~24.0 | 24.0 | 6700 | 0.06 | 5215 | 0.21 | 53 | 5.20 | 2.83 | 239 | 23.45 | 0.74 |
| RS-360SA-13390 | 5.0~13.0 | 12.0 | 4500 | 0.12 | 3351 | 0.35 | 52.4 | 5.14 | 1.80 | 205 | 20.12 | 1.02 |
| RS-365SA-1885 | 5.0~13.0 | 12.0 | 10000 | 0.17 | 8200 | 0.78 | 60 | 5.89 | 5.05 | 345 | 33.86 | 3.65 |
| RS-365PA-3260R | 3.0~12.0 | 12.0 | 30500 | 0.75 | 26000 | 4.38 | 123 | 12.07 | 32.80 | 845 | 82.92 | 25.50 |
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | mN.m | W | g.cm | mN.m | A |
| RS-380SA-20150 | 5.0~13.0 | 12.0 | 8200 | 0.11 | 6801 | 0.54 | 63.5 | 6.23 | 4.43 | 372 | 36.51 | 2.60 |
| RS-385SA-13220 | 6.0~24.0 | 24.0 | 6800 | 0.05 | 5582 | 0.23 | 63.6 | 6.24 | 3.64 | 355 | 34.84 | 1.05 |
| RS-380PA-3755 | 5.0~13.0 | 12.0 | 26500 | 0.72 | 22900 | 4.60 | 143 | 14.03 | 33.59 | 1065 | 104.51 | 29.60 |
| RS-380SA-16255R | 5.0~13.0 | 12.0 | 5000 | 0.1 | 3950 | 0.38 | 64 | 6.28 | 2.59 | 305 | 29.93 | 1.40 |
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | mN.m | W | g.cm | mN.m | A |
| RS-390SA-4536R | 3.0~10.0 | 9.0 | 17300 | 0.64 | 14754 | 3.71 | 153 | 15.01 | 23.15 | 1040 | 102.06 | 21.50 |
| RS-395PA-2075R | 6.0~13.0 | 12.0 | 5600 | 0.12 | 4625 | 0.57 | 90.9 | 8.92 | 4.31 | 522 | 51.23 | 2.70 |
| RS-395SA-15120 | 6.0~24.0 | 24.0 | 7800 | 0.07 | 6265 | 0.30 | 72.2 | 7.09 | 4.64 | 385 | 37.78 | 1.30 |
| RS-390PA-4832 | 3.0~7.0 | 6.0 | 16200 | 0.93 | 13800 | 5.50 | 152 | 14.92 | 21.51 | 1050 | 103.04 | 32.50 |
The Shaft and the motor performance such as voltage and speed can be custom made.
PLS download PDF spec for referrence.
RS-360SA.pdf
RS-380SA.pdf
RS-390SA.pdf
FAQ
Q: How do you make sure motor quality?
A: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders
Q: What's your payment term?
A: For all our new customers, we will need 40% deposite, 60% paid before shipment.
Q: Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM
