High Quality 25mm 12v dc brushless gear motor for medical instruments
Model: 25GA2430
Tytical Application:
Smart Robots
Precious instruments
Industry Product
Home appliance
Medical Instuments
Features:
Combine with 24mm brushless dc motor
Voltage Range from 6 volt to 24 volt
Shaft can be custom made such as threaded shaft
Special customized gears available
4-8 stage gearbox, 15.5/1-478/1 reduction ratio
Lifetime more than 2000h
Rated torque 2-5kg.cm
Pin Arrangement
1. Vcc , Red
2. FG , Green
3. CW/CCW, Yellow
4. GND, Black
5. PWM, Blue

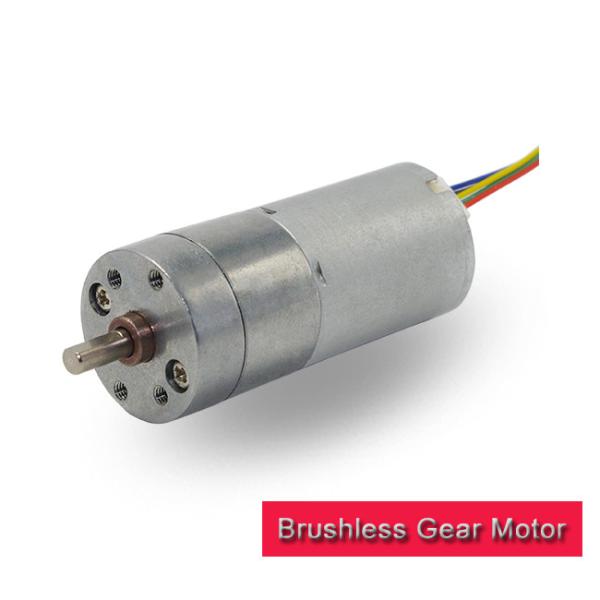

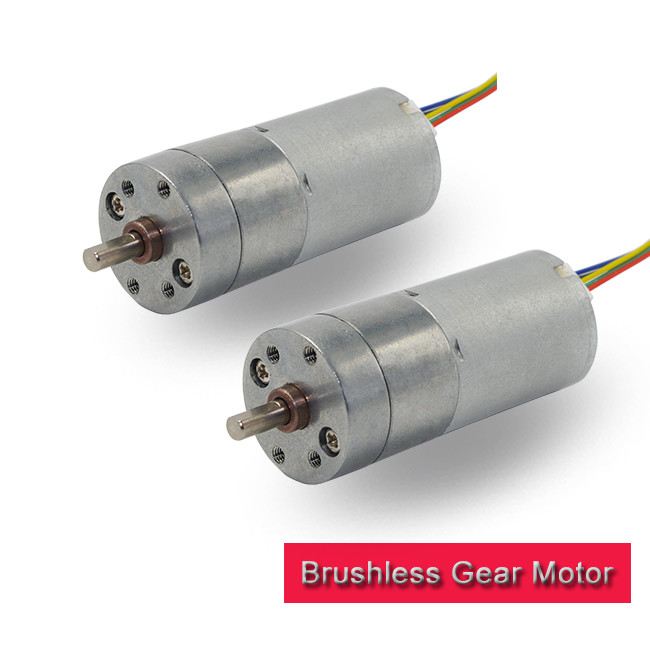

Product Showcase:

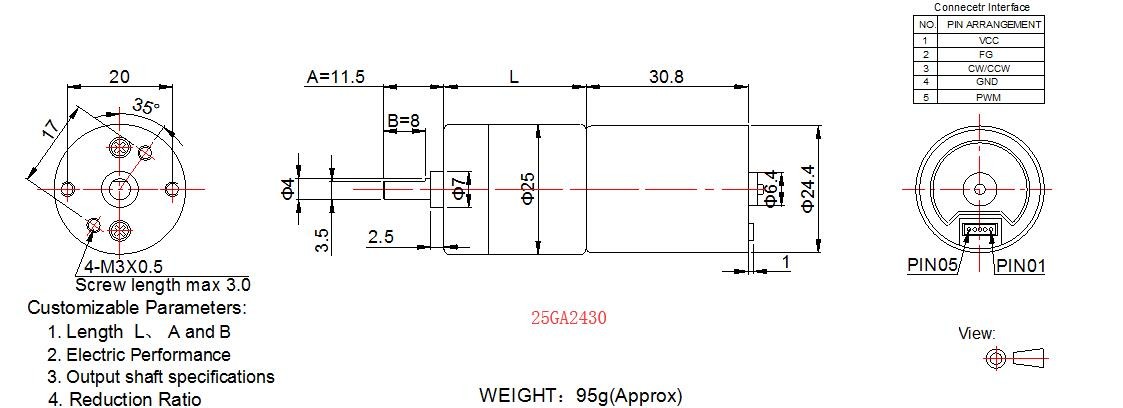

Outline Drawing:
Gearbox Reduction Ratio:
| Gearbox Length (mm) | Stage Number | Reduction Ratio | Rated Torque | Bearable Maximum Instant Torque |
| kg.cm |
| 19 | 4 | 15.5/1 | 20.4/1 | | | | | 1.0 | 3.0 |
| 21 | 5 | 26/1 | 30/1 | 34/1 | 45/1 | | | 2.0 | 6.0 |
| 23 | 6 | 57/1 | 75/1 | 98/1 | | | | 2.5 | 7.0 |
| 25 | 7 | 125/1 | 165/1 | 217/1 | | | | 3.0 | 8.0 |
| 27 | 8 | 274/1 | 362/1 | 478/1 | | | | 3.0 | 8.0 |
Motor Performance:
MODEL | REDUCTION RATIO | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | kg.cm | W | kg.cm | A |
| 25GA2430-34-12180 | 34/1 | 8.0~15.0 | 12.0 | 180 | 0.11 | 152 | 0.42 | 1.2 | 1.87 | 6.9 | 1.84 |
| 25GA2430-98-1264 | 98/1 | 8.0~15.0 | 12.0 | 64 | 0.11 | 53 | 0.42 | 3.0 | 1.63 | 17.2 | 1.84 |
| 25GA2430-165-1238 | 165/1 | 8.0~15.0 | 12.0 | 38 | 0.11 | 32 | 0.41 | 4.0 | 1.31 | 22.8 | 1.84 |
| 25GA2430-478-1213 | 478/1 | 8.0~15.0 | 12.0 | 13 | 0.12 | 11.6 | 0.3 | 6.8 | 0.81 | 67.8 | 1.84 |
The Shaft and the motor performance such as voltage and speed can be custom made.
Pls find the PDF spec for your referrence.
25GA2430.pdf
WHY US:
High Quality IC, stable quality PCBA
Professional international sales team.
High Quality Hobbed gearbox
Promt response within 24h
Prefession in gearbox and motor
100% inspection during production
Customization available
Accessories Available
FAQ
Q: What is your MOQ?
A: Generally, the MOQ is 1000 pieces for our motors. But we can support you with small quantity for the first trial order .
Q: Do you have motors in stocks?
A: No, all motors are made according to the customers' requirements, so it is difficult for us to make in stocks.
Q: What if i don't know the above data?
A: Please contact our saleman to handle,we'll answer your questions patiently.
Q: How to select a suitable motor?
A: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
