Long lifetime silent 6v 12v 24v dc brushless worm gear motor for home appliance
Model: 46GF2430
Tytical Application:
Smart Robots
Precious instruments
Actuator
Industry Product
Home appliance
Vending machine
Features:
Combine with 24mm brushless dc motor
Voltage Range from 6 volt to 24 volt
Shaft can be custom made such as threaded shaft
Special customized gears available
High quality DC worm gearbox
3-4 stage gearbox, 65/1-900/1 reduction ratio
Lifetime more than 2000h
Rated torque 3-5kg.cm
Low noise
Pin Arrangement
1. Vcc , Red
2. FG , Green
3. CW/CCW, Yellow
4. GND, Black
5. PWM, Blue

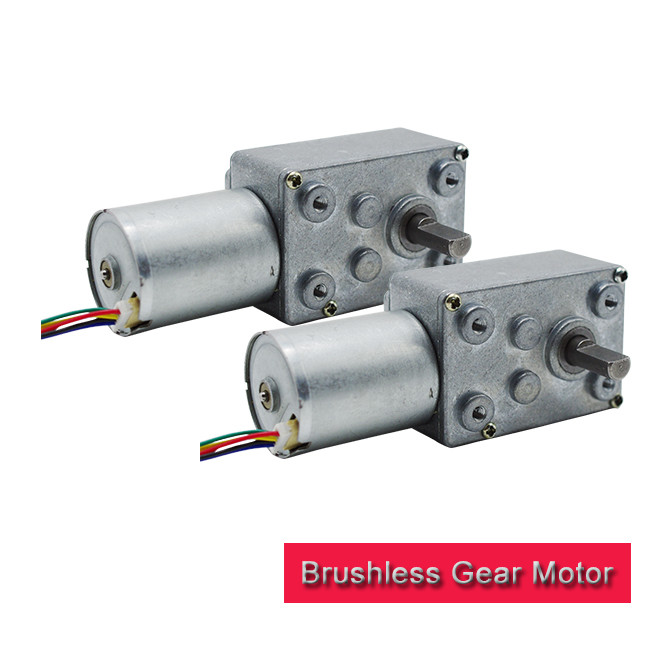

Product Showcase:

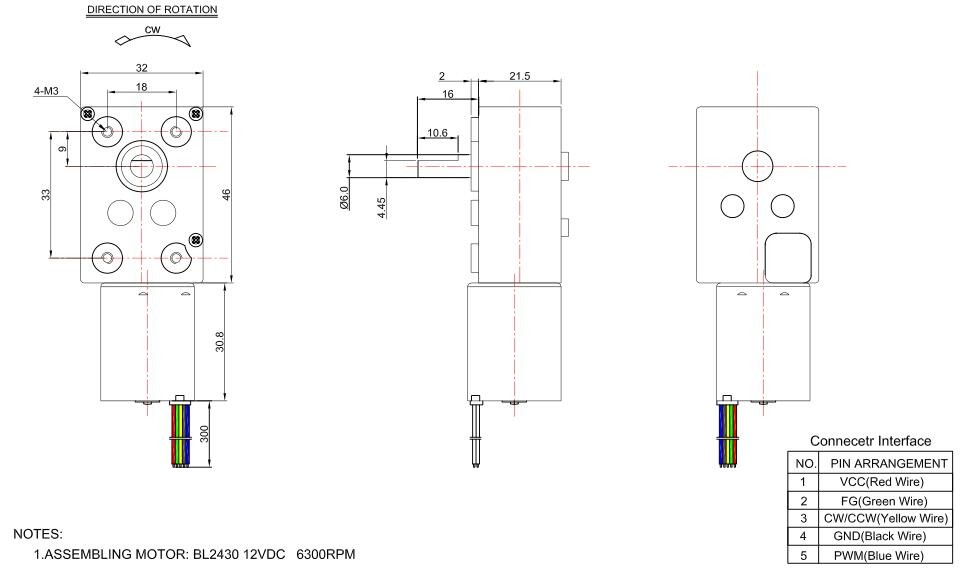

Outline Drawing:
Gearbox Reduction Ratio:
| Gearbox Length (mm) | Stage Number | Reduction Ratio | Rated Torque | Bearable Maximum Instant Torque |
| kg.cm |
| 46 x 32 x 21.5 | 3 | 65/1 | 105/1 | 185/1 | | | | 3.0 | 6.0 |
| 4 | 320/1 | 412/1 | 478/1 | 600/1 | 900/1 | | 5.0 | 10.0 |
Motor Performance:
| Rated Voltage | 12v |
| Voltage Range | 5-12v |
| No-load speed | 91+-10%rpm |
| No-load current | 0.15A max |
| Rated Load | 1kg.cm |
| Rated Load Speed | 84+-10% |
| Rated Current | 0.35A Max |
| Stall Torque | 12Kg.cm Min |
| Stall Current | 2A Max |
| Starting Voltage No Load | 5V Max |
| End Play | 0.5mm Max |
MODEL | REDUCTION RATIO | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | kg.cm | W | kg.cm | A |
| 46GF2430-65-06140 | 65/1 | 3.0~7.0 | 6.0 | 140 | 0.13 | 118 | 0.76 | 1.0 | 1.21 | 6.4 | 4.1 |
| 46GF2430-105-0682 | 105/1 | 3.0~7.0 | 6.0 | 85 | 0.13 | 73 | 0.73 | 1.5 | 1.12 | 10.2 | 4.1 |
| 46GF2430-65-12120 | 65/1 | 5.0~13.0 | 12.0 | 120 | 0.07 | 101 | 0.76 | 1.5 | 1.55 | 9.4 | 2.4 |
| 46G2430-478-1216 | 478/1 | 5.0~13.0 | 12.0 | 16 | 0.07 | 11.3 | 0.35 | 8.0 | 0.93 | 63.5 | 2.4 |
| 46GF2430-900-2405 | 900/1 | 6.0~24.0 | 24.0 | 5.5 | 0.03 | 4.4 | 0.11 | 15.0 | 0.68 | 71.5 | 0.43 |
The Shaft and the motor performance such as voltage and speed can be custom made.
