24mm 3v dc virbation motor with SECC vibrator for game controller
Model No.: RF-300CA-Z
Applications:
Massager
Game controller
Sex toys
Feature:
SECC vibrator
Oil-impregnated bearing
Precious metal brush
Varistor inside the motor
Zinc housing
Stainless steel shaft

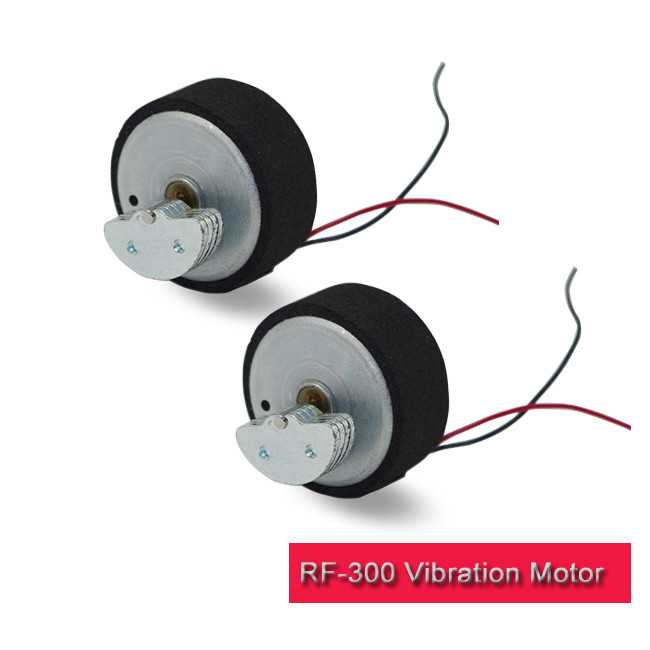

Product Showcase:

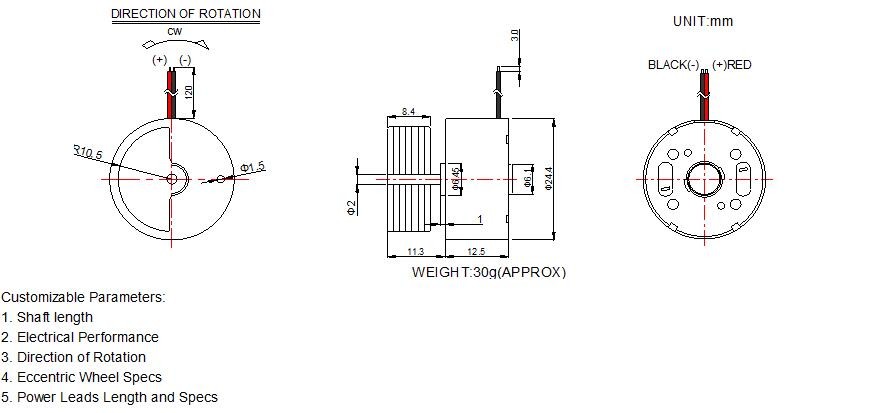

Outline Drawing:
Motor Performance:
| MODEL | VOLTAGE | VOLTAGE | RATED PERFORMANCE | STALL CURRENT |
| VOLTAGE RANGE | NOMINAL | SPEED | CURRENT | LOAD |
| V | V | rpm | A | mm | A |
| RF-300CA-12350 R10.5×8.4 | 1.5-3.0 | 2 | 0.8 | 1700 | 0.11 | R10.5×8.4 | 0.22 |
| RF-300CA-11440 R10.5×8.4 | 2.0-4.0 | 3 | 1.2 | 2100 | 0.12 | R10.5×8.4 | 0.28 |
| RF-300CA-07800 R10.5X6 | 3.5-6.0 | 6 | 2.2 | 2400 | 0.06 | R10.5X6 | 0.19 |
The shaft length and motor performance can be custom made, such as the voltage and speed.
FAQ
Q: Do you have individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.
Q: Can I have samples for testing first?
A: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
Q: How do you make sure motor quality?
A: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.
Q: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.
