High speed micro dc vibration motor 1.5v 3v mini coreless dc motor with vibrator
Model No.: 0612-Z
Applications:
Beauty product
Massager
Sports watch
Features:
Coreless vibration motor
Tungsten alloy eccentric wheel
6mm motor diameter
Plastic end cap
0.05-0.5mm end play
1.5v-3v rated voltage
8000-15000rpm

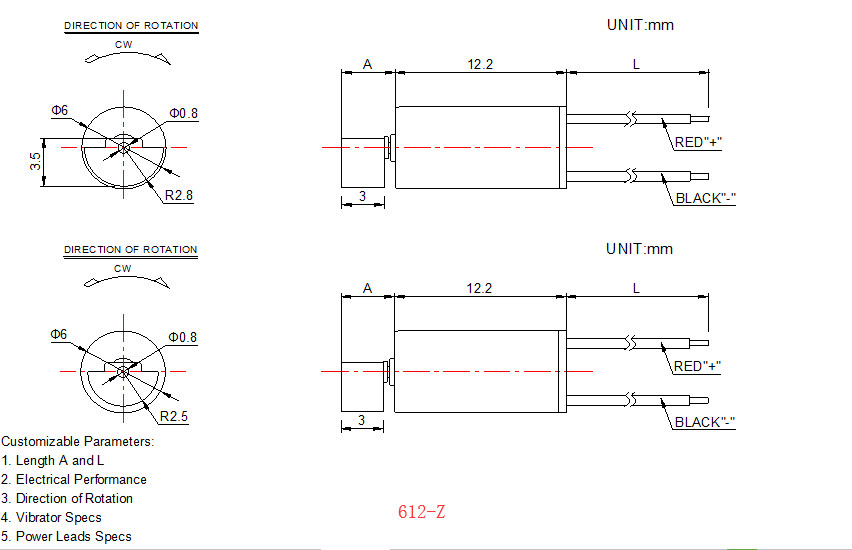

Outline Drawing:
Motor Performance:
| MODEL | VOLTAGE | RATED LOAD | STARTING
VOLTAGE | STALL
CURRENT |
| OPERATING RANGE | NOMINAL | VIBRATOR | SPEED | CURRENT |
| V | mm | rpm | A | V | A |
| 0612-Z-1 | 2.0~4.0 | 3.0 | R2.8×3 | 11000 | 0.04 | 0.80 | 0.10 |
| 0612-Z-2 | 1.2~2.5 | 1.5 | R2.5×3 | 12000 | 0.06 | 0.80 | 0.12 |
The shaft length and motor performance can be custom made, such as the voltage and speed.

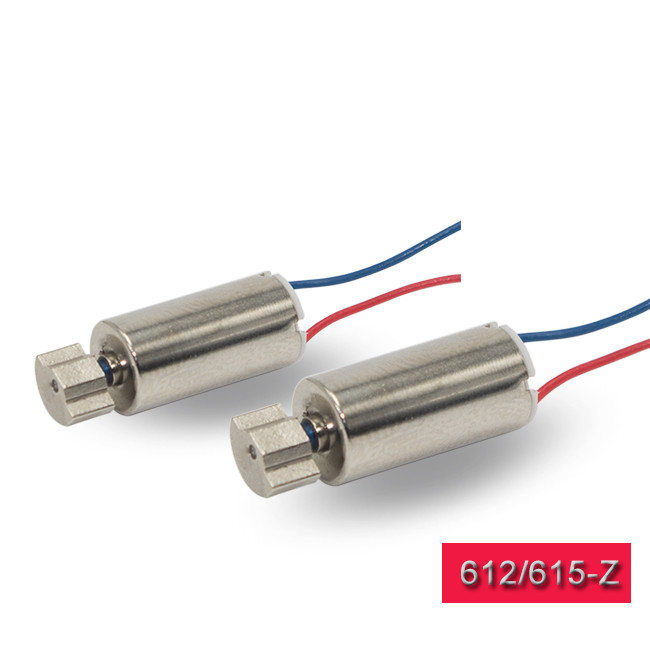

Product Showcase:
FAQ
Q: What is your MOQ?
A: Generally, the MOQ is 1000 pieces for our motors. But we can support you with small quantity for the first trial order .
Q: Do you have motors in stocks?
A: No, all motors are made according to the customers' requirements, so it is difficult for us to make in stocks.
Q: What's your main products?
A: Dia4~42mm DC Micro Motor and Gear Motor,Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor,Spur Gear motor, Micro Motor, Vibration motor etc.
Q: What's the main usage of the micro dc gear motor?
A: Our motor widely used in Home Appliance,Office Equipment,Health-care appliance,Sanitation industry, High-class toy,Banking System,Electronic and electrical tools,automation industry, bank equipments,payment equipments,vending machines,power door lock,electric door lock.
Q: Do you accept customize?
A: Sure,as we have a strong design team,any problems will get our technical answer.
Q: What kind of data do i neet to provide if i want to order?
A: Please kindly tell us your voltage,speed,torque and overall dimension.
