Big Vibration high quality RS 395 dc motor with powder metallurgy vibrator 12v 24v dc vibration motor
Model No.: RS-395SH
Main features:
Carbon brush dc motor
Metal end cap
27.7mm housing diameter
Permanent magnet
Ball bearing available
Powder Metallurgy eccentric wheel

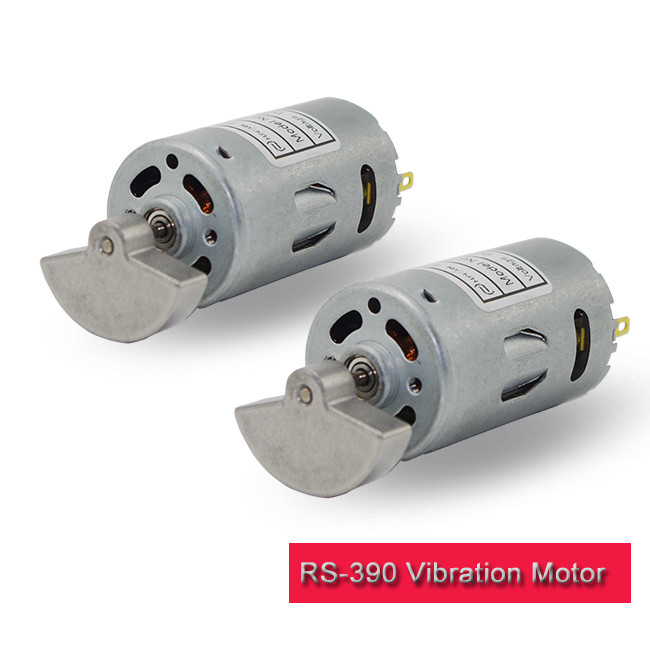

Product Showcase:

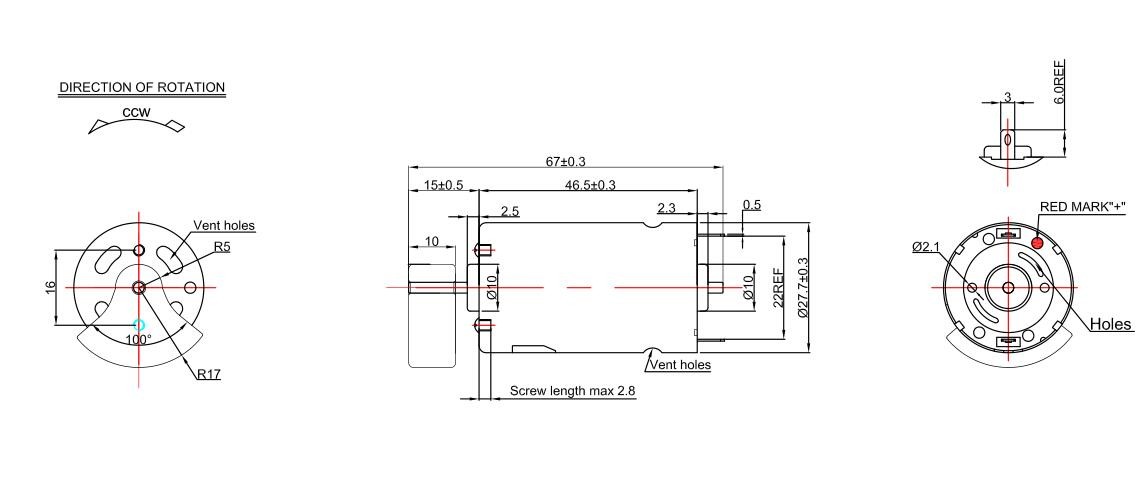

Outline Drawing:

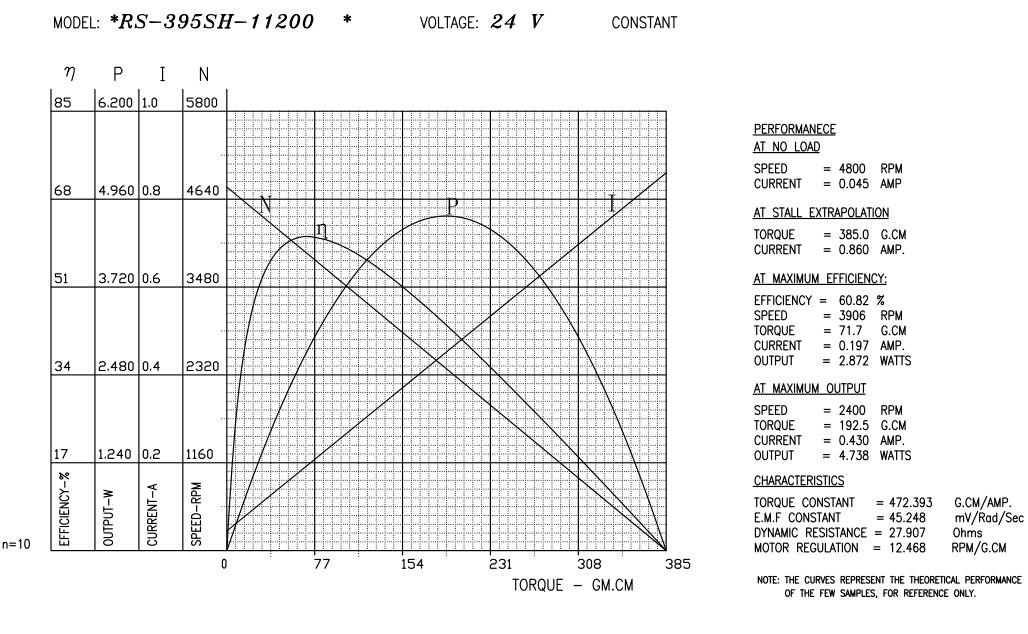

Motor Performance:
| Rated Voltage | 24v |
| No-load speed | 4800±10%rpm |
| No-load current | 0.045A(0.09A Max) |
| Rated Load | Powder metallurgy iron vibrator R17*10 |
| Rated Load Speed | 4000±10%rpm |
| Rated Load Current | 0.19A(0.3A Max) |
| Stall Torque | 385g-cm(320-cm Min) |
| Stall Current | 0.86A(0.1.2A Max) |
| Starting Voltage | 7.5V Max |
| End Play | 0.05-0.55mm |
The shaft length and motor performance can be custom made, such as the voltage and speed.
FAQ
Q: When will you reply after got my inquiries?
A: We will response within 24 hours once get your inquires.
Q: What's the minimum order quantity?
A: Our minimum order quantity depends on different motor models, please email us to check. Also, we usually do not accept personal use motor orders.
Q: What's your shipping method for motors?
A: For samples and packages less than 100kg, we usually suggest express shipping; For heavy packages, we usually suggest air shipping or sea shipping. But it all depends on our customers' needs.
Q: What certifications do you have?
A: We currently have CE and ROSH certifications.
Q: Can you send me your price list?
A: Since we have hundreds of different products, and price varies per different specifications, we are not able to offer a price list. But we can quote within 24 hours once got your inquirues to make sure you can get the price in time.
Q: Can I visit your company?
A: Yes, welcome to visit our company, but please let us know at least two weeks in advance to help us make sure no other meetings during the day you visit us. Thanks!
Q: Can you make a motor with custom specifications?
A: Definitely yes, that’s the aim we work for, we provide customized motor with valued add service for our clients.
Q: What’s the capacity per month?
A: Over One Million pieces per month for all DC Motor series.
Q: Where is your plant?
A: Located in Shenzhen city, Guangdong province, China.
Q: Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM
