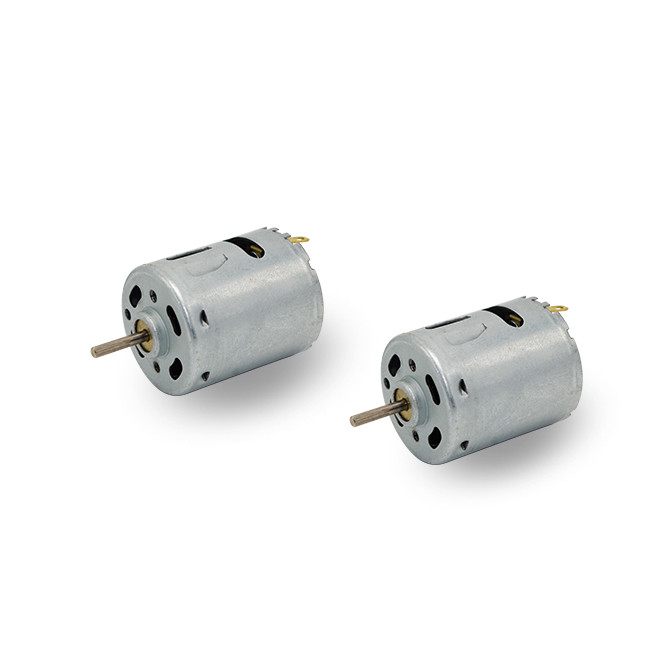

High Speed 18v mini dc motor for hair dryer / High quality high torque carbon brush micro dc motor RS 360 365
Model No.: RS-360SH/RS-365SH
Applciations:
Water pump
Small power tool
Home appliance
Small mixer
Toys
Features:
Carbon brush
3/5 slot rotor
Metal end cap
2.3mm stainless steel shaft
Knurling shaft or threaded shaft available
Varistor and capacitors available
Dual shaft available
2D Drawing:
Motor Performance:
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | mN.m | W | g.cm | mN.m | A |
| RS-365SH-2070 | 3.0~18.0 | 18.0 | 19400 | 0.22 | 16210 | 1.12 | 77.3 | 7.59 | 12.85 | 470 | 46.12 | 5.68 |
| RS-360SH-2885 | 3.0~8.0 | 7.2 | 12500 | 0.36 | 3351 | 0.35 | 52.4 | 5.14 | 1.80 | 420 | 41.22 | 8.60 |
| RS-365SH-15260 | 5.0~13.0 | 12.0 | 6500 | 0.1 | 5230 | 0.40 | 57.6 | 5.65 | 3.09 | 296 | 29.05 | 1.62 |
| RS-360PH-4535R | 3.0~8.0 | 7.2 | 28600 | 0.75 | 23800 | 6.40 | 112 | 10.99 | 27.34 | 685 | 67.22 | 32.50 |
Pls download the PDF document for referrence.
RS-360SH.pdf
Product Showcase:
FAQ
Q: What is your MOQ?
Generally, the MOQ is 1000 pieces for our motors. But we can support you with small quantity for the first trial order .
Q: What's the deliverly time of sample and the cargo?
For regular specification, it needs about 3-5 working days for samples, and 15-20 working days for the cargo; For customized specification, it needs about 7-10 working days for samples, 25-30 working days for the cargo.
Q: What is the payment terms?
T/T, Western Union, Paypal, etc, easy for your business.
Q: Do you have customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q: Can I have samples for testing first?
A: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
Q: When will you reply after got my inquiries?
A: We will response within 24 hours once get your inquires.
