FF-N20 Mini DC Motor With Precious Metal Brush Or Carbon Brush For sphygmometer
Main Product:
DC Brush Motor: 10mm-42mm brush dc motors, precious metal brush or carbon brush.
Coreless DC Motor: 4mm-10mm coreless dc motor, brush type.
Vibration Motor: We can add eccentric wheel on the brush dc motor and coreless dc motor. The size of eccentric wheel can be customized.
Brushless DC Motor: 24mm-42mm brushless dc motor
Gear Motor: 6mm-42mm round type gearbox, and right angle worm gearbox, we have both plastic and metal gearbox, gearbox type including spur gearbox, planetary gearbox and worm gearbox.
All the performance like voltage and speed can be custom made, for more information, pls email to us for detail.

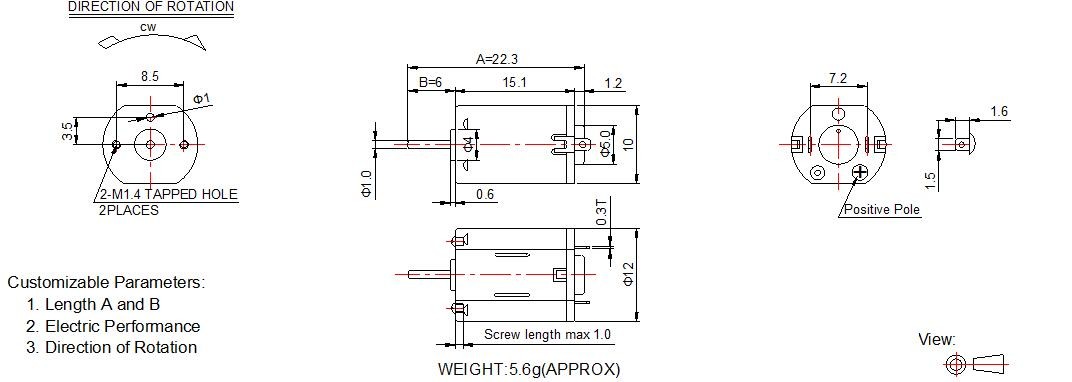

Outline Drawing:
Motor Peformance:
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| VOLTAGE RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORGUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | mN.m | W | g.cm | mN.m | A |
| FF-N20TA-06360 | 3.0-7.0 | 6.0 | 9500 | 0.013 | 7800 | 0.05 | 2 | 0.20 | 0.16 | 9.6 | 0.94 | 0.185 |
| FF-N20TA-07280 | 3.0-12.0 | 12.0 | 26000 | 0.02 | 22000 | 0.11 | 3 | 0.29 | 0.68 | 21 | 2.06 | 0.625 |
| FF-N20TA-08225 | 3.0-7.0 | 6.0 | 16000 | 0.025 | 12960 | 0.11 | 3 | 0.29 | 0.40 | 15.8 | 1.55 | 0.475 |
| FF-N20TA-09180 | 3.0-7.0 | 6.0 | 20500 | 0.034 | 16950 | 0.16 | 3.1 | 0.30 | 0.54 | 17.8 | 1.75 | 0.77 |
| FF-N20TA-09168 | 3.0-7.0 | 3.0 | 10800 | 0.026 | 8400 | 0.104 | 2.1 | 0.21 | 0.18 | 10.5 | 1.03 | 0.418 |
| FF-N20TA-11125 | 3.0-7.0 | 6.0 | 20500 | 0.065 | 23700 | 0.33 | 4.5 | 0.44 | 1.09 | 27 | 2.65 | 1.66 |
| FF-N20TA-10165 | 3.0-7.0 | 5.0 | 18500 | 0.034 | 15400 | 0.16 | 2.9 | 0.28 | 0.46 | 17.2 | 1.69 | 0.792 |
| FF-N20TA-12115 | 3.0-7.0 | 6.0 | 31000 | 0.135 | 24500 | 0.51 | 6.3 | 0.62 | 1.58 | 31 | 3.04 | 1.92 |
The shaft and motor performance such as voltage and speed can be custom made.
Here attached the PDF spec for your referrence.
FF-N20TA.pdf

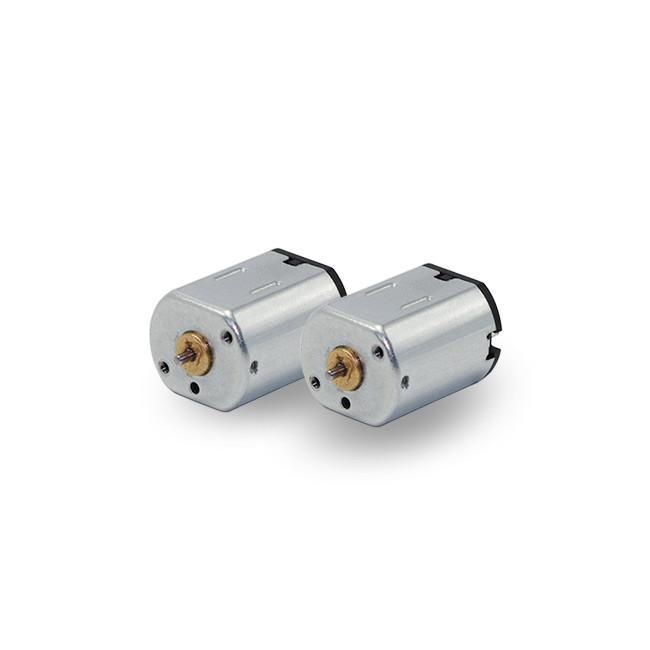

Product Showcase:
Customization Characteristics:
※ Encoder possible
※ Internal capacitors or varistor
※ Voltage and speed adjustment by winding change
※ Modification of shaft length
※ Modification of shaft configuration (flat, hole, knurling, rear shaft etc.)
※ Assembly of gears, vibrators, pulley, etc.
※ Gears made by hobbing machine or powder metallurgy.
※ Special gears (Helical gears, bevel gears, etc)
Competitive Advantages:
10 years in manufacturing dc motor and gearbox.
Customization available.
Reasonable price with good quality product.
High Product performance: Low noise, High efficiency, long lifespan
Prompt Reply and Short Lead time
Good Service and Nice Communication.
Small orders accepted.
Sample available.
100% inspection during the production.
FAQ
Q: Can you make motors customized?
Yes, we can and welcome.
Q: What's the deliverly time of sample and the cargo?
For regular specification, it needs about 3-5 working days for samples, and 15-20 working days for the cargo; For customized specification, it needs about 7-10 working days for samples, 25-30 working days for the cargo.
Q: What is your MOQ?
Generally, the MOQ is 1000 pieces for our motors. But we can support you with small quantity for the first trial order .
Q: Do you have motors in stocks?
No, all motors are made according to the customers' requirements, so it is difficult for us to make in stocks.
Q: What is the payment terms?
T/T, Western Union, Paypal, etc, easy for your business.
Q: What information you need provide if you want we recommend motors for you?
You need provide the basic specification of the motor, like: Dimesnion, Application, Voltage, Speed and Torque. If you have samples or drawings, it's better you can send it to us.
Product Tags:
|
|

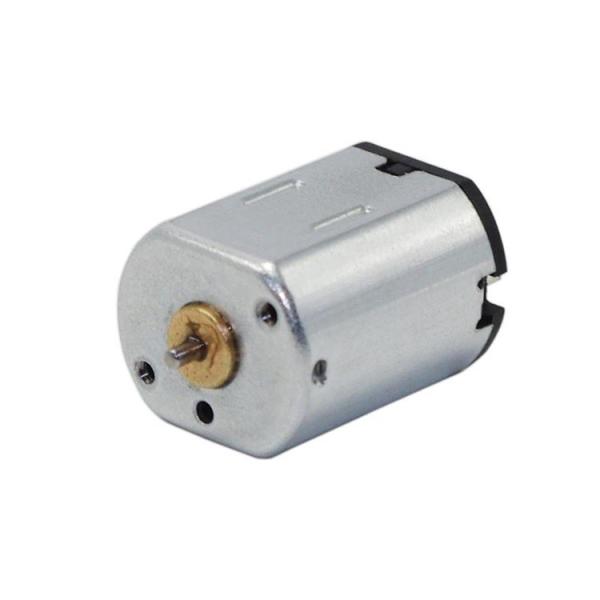

FF- N20 DC Motor Images
|
