High speed high torque carbon brush miniature 12v dc motor 30000rpm for water pump
Model No.: RS-360SA/RS-365SA
Applications:
Small water pump
Small home appliance
Small powerful tools
Smart robots
Main Features:
High quality carbon brush
3 or 5 slots armature
Plastic end cap
Encoder available.
Flux ring availabe
Stainless shaft can be knurled
Built-in varistor available

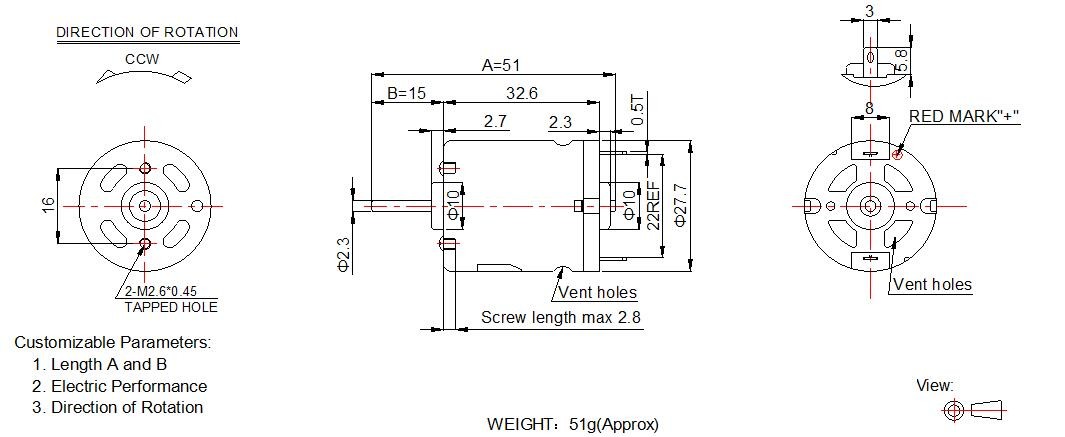

2D Drawing:

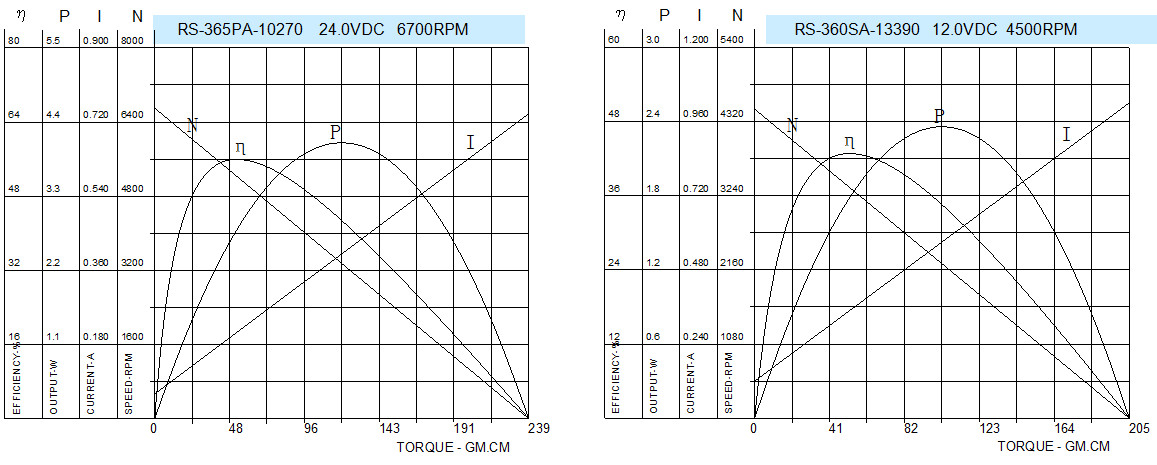

Motor Performance:
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | mN.m | W | g.cm | mN.m | A |
| RS-365PA-10270 | 6.0~24.0 | 24.0 | 6700 | 0.06 | 5215 | 0.21 | 53 | 5.20 | 2.83 | 239 | 23.45 | 0.74 |
| RS-360SA-13390 | 5.0~13.0 | 12.0 | 4500 | 0.12 | 3351 | 0.35 | 52.4 | 5.14 | 1.80 | 205 | 20.12 | 1.02 |
| RS-365SA-1885 | 5.0~13.0 | 12.0 | 10000 | 0.17 | 8200 | 0.78 | 60 | 5.89 | 5.05 | 345 | 33.86 | 3.65 |
| RS-365PA-3260R | 3.0~12.0 | 12.0 | 30500 | 0.75 | 26000 | 4.38 | 123 | 12.07 | 32.80 | 845 | 82.92 | 25.50 |
Pls download the PDF document for referrence.
RS-360SA.pdf

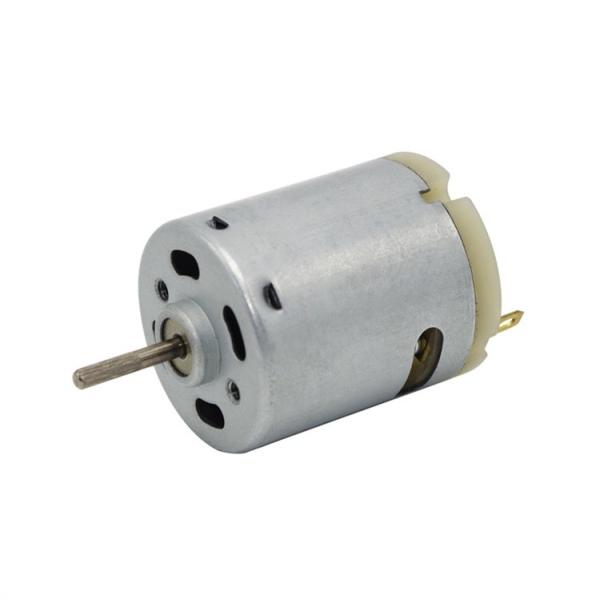

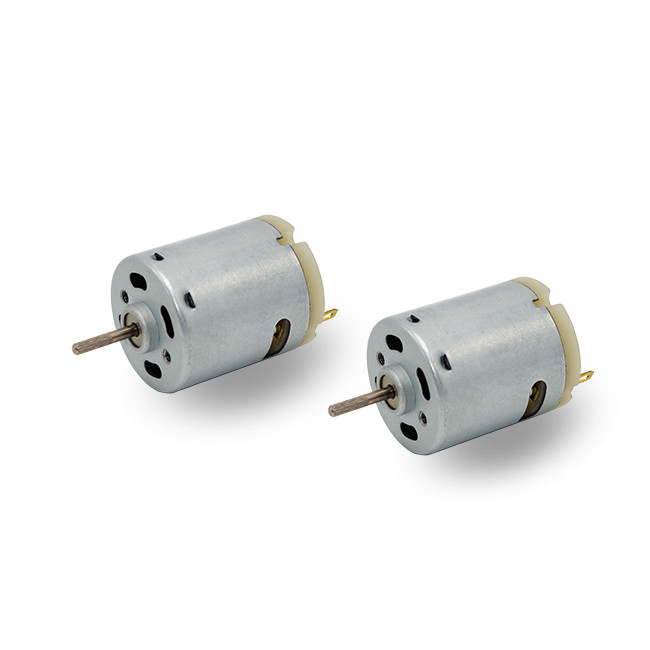

Product Showcase:
Our Advantages:
Nice communication
Fast reponse
100% inspection
Using good quality material
Customization available
FAQ
Q: What is your MOQ?
Generally, the MOQ is 1000 pieces for our motors. But we can support you with small quantity for the first trial order .
Q: Do you have motors in stocks?
No, all motors are made according to the customers' requirements, so it is difficult for us to make in stocks.
Q: What is the payment terms?
T/T, Western Union, Paypal, etc, easy for your business.
Q: Do you have customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q: Can I have samples for testing first?
A: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
Q: How do you make sure motor quality?
A: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
Q: When will you reply after got my inquiries?
A: We will response within 24 hours once get your inquires.
