High torque high speed 12 volt mini dc motor for model car / carbon brush dc motor 6v 12v 24v
Model No.: RS-550SA/RS-555SA
Typical Application:
This motor can be used for powerful toys, slot cars, wireless models, vacuum cleaner and other home appliance.
Features:
Fluxing Ring Available
Cooling fan available
Class F copper wire
12v-24v rated voltage
It can be ball bearing instead of oil-impregnated bearing
35.8mm housing diameter
3 or 5 slots rotor
We can add varistor and capacitors within the housing

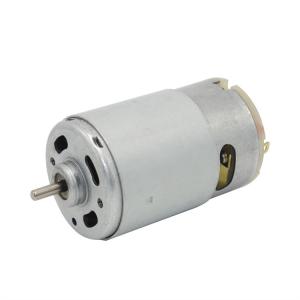

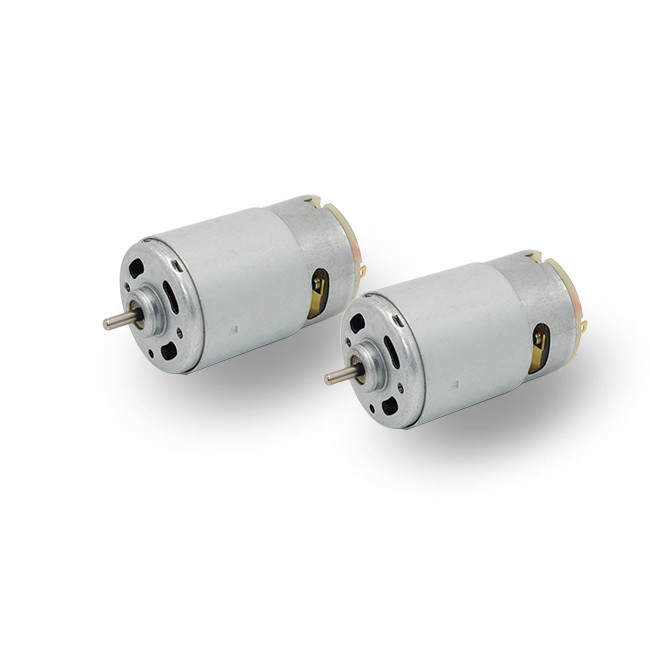

Product Showcase:

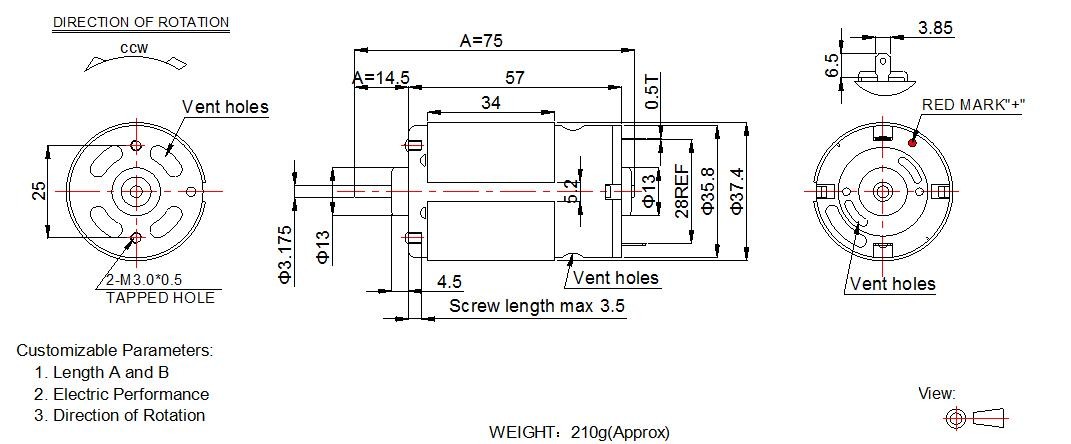

2D Drawing:

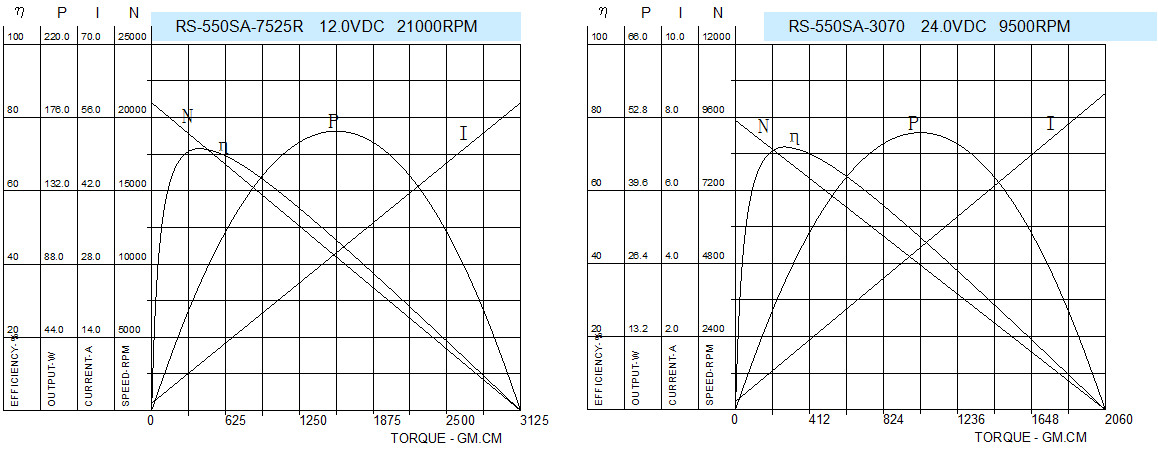

Motor Performance:
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | mN.m | W | g.cm | mN.m | A |
| RS-550SA-7525R | 5.0~13.0 | 12.0 | 21000 | 1.4 | 18193 | 9.07 | 417.7 | 40.99 | 77.94 | 3125 | 306.67 | 58.80 |
| RS-550SA-3070 | 5.0~25.0 | 24.0 | 9500 | 0.22 | 8193 | 1.38 | 283.3 | 27.80 | 23.81 | 2060 | 202.16 | 8.65 |
| RS-555SA-2285R | 5.0~25.0 | 24.0 | 6250 | 0.12 | 5432 | 1.02 | 240 | 23.55 | 13.37 | 1797 | 176.35 | 5.05 |
| RS-555PA-2596R | 5.0~13.0 | 12.0 | 3000 | 0.12 | 2510 | 0.62 | 188 | 18.45 | 4.84 | 1156 | 113.44 | 3.18 |
Pls download the PDF document for referrence.
RS-550SA.pdf
FAQ
Q: Can you make a motor with custom specifications?
A: Definitely yes, that’s the aim we work for, we provide customized motor with valued add service for our clients.
Q: Can you send us a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. We prefer send you a official offer with your specific requirements.
Q: What’s the capacity per month?
A: Over One Million pieces per month for all DC Motor series.
Q: Where is your plant?
A: Located in Shenzhen city, Guangdong province, China.
Q: Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM
