High Torque Plastic Gearbox with FC-130 dc motor plastic dc gear motor for DIY toys
Model No.: T130
Applications:
DIY toys
Toy robots
Electric toys
Features:
FC-130 carbon brush dc motor
Output power 0.3-5.0W
Plastic spur gearbox
Varistor inside the motor
3 solts rotor
3v-12v rated voltage
Outline Drawing:
Motor Performance:
| Gearbox Length (mm) | Stage Number | Reduction Ratio | Rated Torque | Bearable Maximum Instant Torque |
| kg.cm |
| 64*22.5*18.5 | 4 | 48/1 | 120/1 | 180/1 | 220/1 | 256/1 | 288/1 | 1.0 | 3.0 |
MODEL | REDUCTION RATIO | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | kg.cm | W | kg.cm | A |
| T130-01-06500 | 48/1 | 3.0~7.0 | 6.0 | 500 | 0.21 | 416 | 1.04 | 0.4 | 1.71 | 2.4 | 5.2 |
| T130-01-06200 | 120/1 | 3.0~7.0 | 6.0 | 200 | 0.21 | 415 | 1.06 | 1.0 | 4.26 | 5.9 | 5.2 |
| T130-01-09175 | 48/1 | 3.0~10.0 | 9.0 | 175 | 0.09 | 133 | 0.17 | 0.3 | 0.41 | 1.3 | 0.55 |
| T130-01-0938 | 220/1 | 3.0~10.0 | 9.0 | 38 | 0.09 | 31 | 0.14 | 1.0 | 0.32 | 5.8 | 0.55 |
| T130-01-1260 | 220/1 | 3.0~13.0 | 12.0 | 60 | 0.05 | 48 | 0.2 | 1.5 | 0.74 | 5.8 | 0.85 |
Motor Performance such as voltage and speed can be custom made.
Avaiable Color: Yellow, Black and While.
Pls find the PDF spec below.
T130-01.pdf

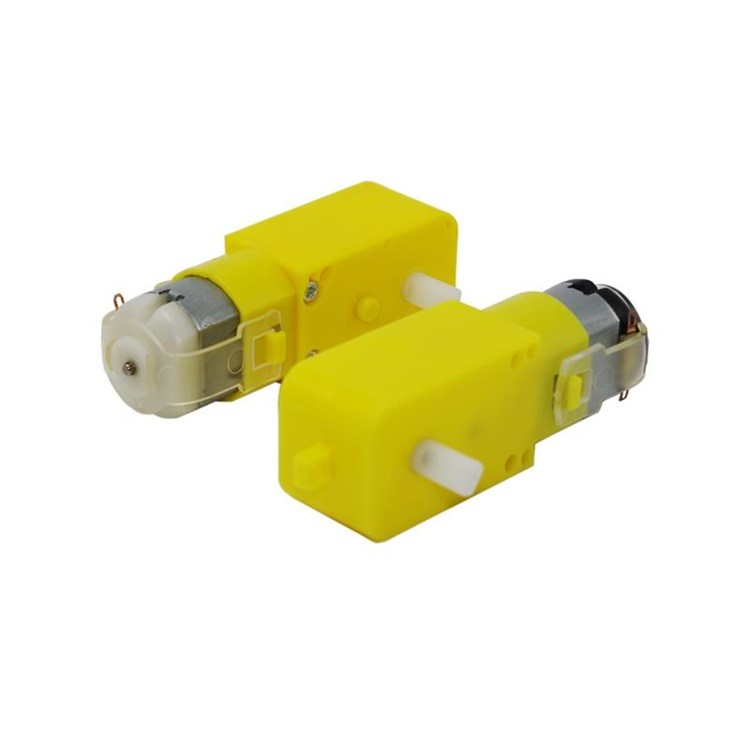

Product Picture:
FAQ
Q: Can you make motors customized?
Yes, we can and welcome.
Q: What's the deliverly time of sample and the cargo?
For regular specification, it needs about 3-5 working days for samples, and 15-20 working days for the cargo; For customized specification, it needs about 7-10 working days for samples, 25-30 working days for the cargo.
Q: What is your MOQ?
Generally, the MOQ is 1000 pieces for our motors. But we can support you with small quantity for the first trial order .
Q: Do you have motors in stocks?
No, all motors are made according to the customers' requirements, so it is difficult for us to make in stocks.
Q: What is the payment terms?
T/T, Western Union, Paypal, etc, easy for your business.
Q: What information you need provide if you want we recommend motors for you?
You need provide the basic specification of the motor, like: Dimesnion, Application, Voltage, Speed and Torque. If you have samples or drawings, it's better you can send it to us.
