High Quality L shape 6v 12v dc plastic gear motor for DIY Toys
Model No.: T130-03
Applications:
RC car
DIY toys
Toy robot
Education product
Features:
Plastic gearbox
48/1-288/1 reduction ratio
3v-12v voltage range
10-500rpm
0.1-1.5kg.cm load
Carbon brush 130 dc motor
We can solder the wire for you

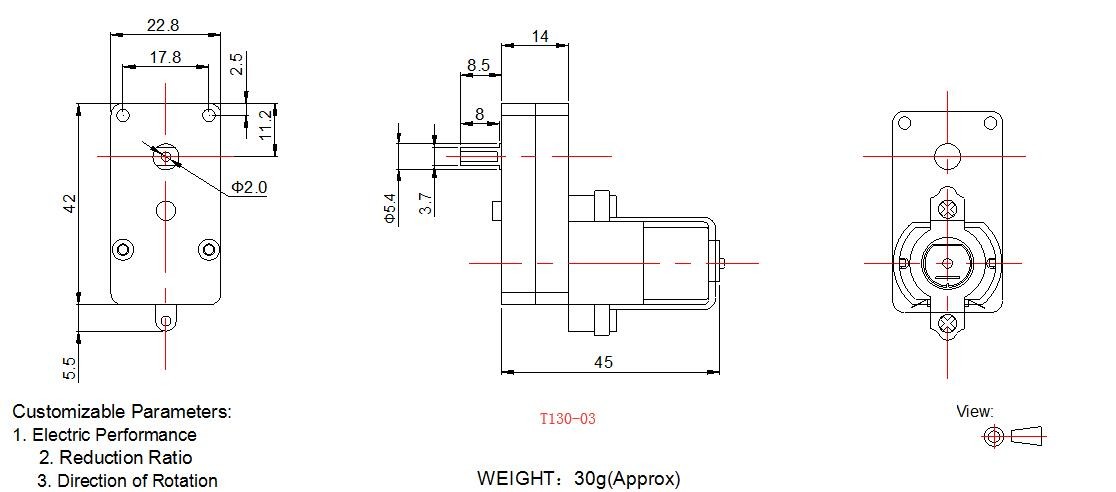

Outline Drawing:
Description:
Standard gearbox
Gearbox Reduction Ratio:
| Gearbox Length (mm) | Stage Number | Reduction Ratio | Rated Torque | Bearable Maximum Instant Torque |
| kg.cm |
| 42*22.8*14 | 4 | 48/1 | 120/1 | 180/1 | 220/1 | 256/1 | 288/1 | 1.0 | 3.0 |
Motor Performance:
MODEL | REDUCTION RATIO | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | kg.cm | W | kg.cm | A |
| T130-03-06500 | 48/1 | 3.0~7.0 | 6.0 | 500 | 0.21 | 416 | 1.04 | 0.4 | 1.71 | 2.4 | 5.2 |
| T130-03-06200 | 120/1 | 3.0~7.0 | 6.0 | 200 | 0.21 | 415 | 1.06 | 1.0 | 4.26 | 5.9 | 5.2 |
| T130-03-09175 | 48/1 | 3.0~10.0 | 9.0 | 175 | 0.09 | 133 | 0.17 | 0.3 | 0.41 | 1.3 | 0.55 |
| T130-03-0938 | 220/1 | 3.0~10.0 | 9.0 | 38 | 0.09 | 31 | 0.14 | 1.0 | 0.32 | 5.8 | 0.55 |
| T130-03-1260 | 220/1 | 3.0~13.0 | 12.0 | 60 | 0.05 | 48 | 0.2 | 1.5 | 0.74 | 5.8 | 0.85 |
Motor Performance such as voltage and speed can be custom made.
Pls find the PDF spec below for referrence.
T130-03.pdf

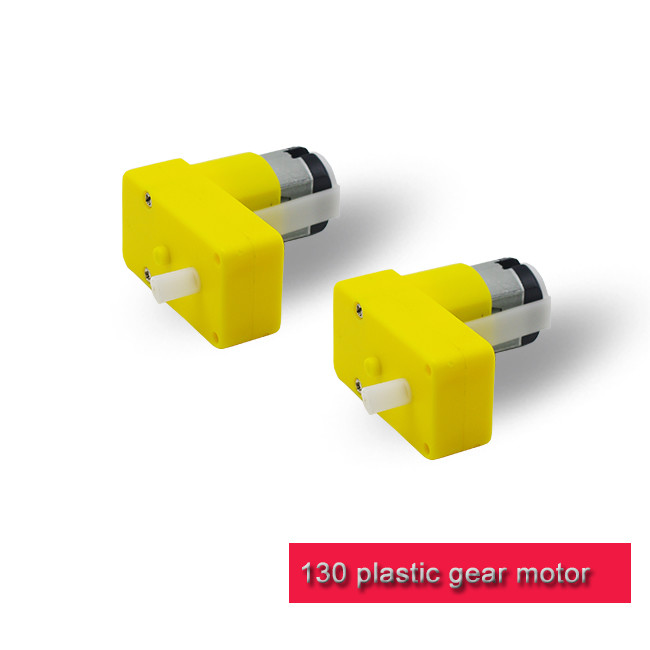

Product Picture:
