High quality 24m 12v dc motor RF 370 metal brush mini dc motor for automobile
Model: RF-370
Tytical Application:
Pump
Precious instruments
Automobile
Home appliance
Features:
| Precious metal brush or carbon brush |
| Oil-impregnated bearing |
| 3v-24v voltage range |
| Low noise |
| 200-500h lifetime |
| 20-60g.cm rated load |
| Varistor inside |
| Low EMI |

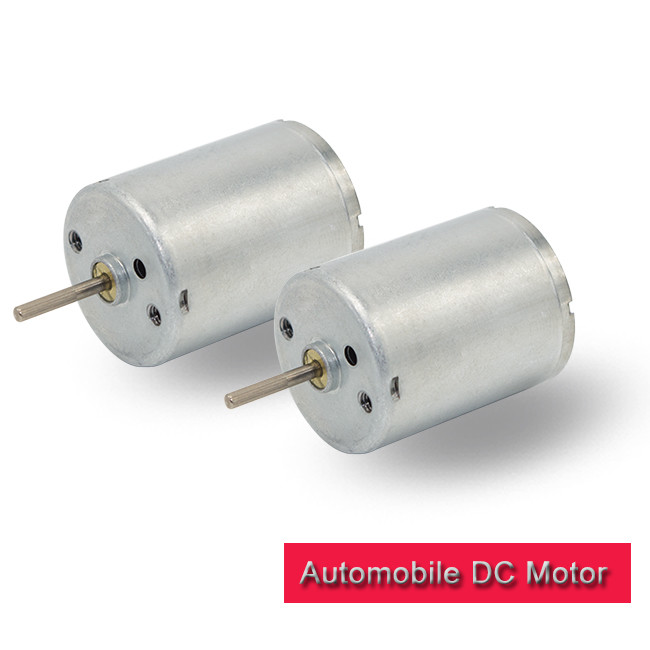

Product Showcase:
Outline Drawing:

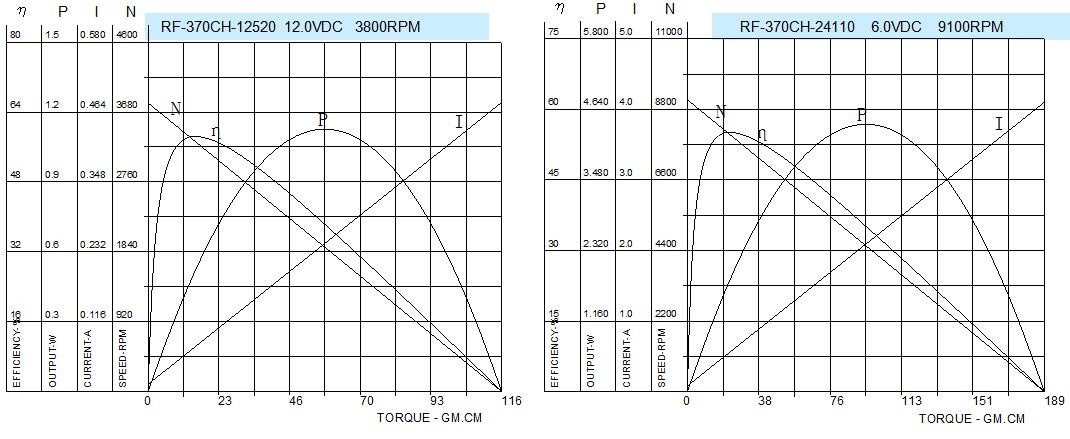

Motor Performance:
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | mN.m | W | g.cm | mN.m | A |
| RF-370CH-12520 | 6.0~13.0 | 12.0 | 3800 | 0.01 | 3284 | 0.08 | 15.8 | 1.55 | 0.53 | 116 | 11.38 | 0.48 |
| RF-370CH-24110 | 3.0~7.0 | 6.0 | 9100 | 0.08 | 7985 | 0.57 | 23.2 | 2.28 | 1.90 | 189 | 18.55 | 4.10 |
| RK-370SH-13390 | 6.0~24.0 | 24.0 | 8000 | 0.01 | 7000 | 0.18 | 33 | 3.24 | 2.37 | 275 | 26.99 | 1.32 |
| RK-370SH-2776 | 3.0~12.0 | 12.0 | 19600 | 0.25 | 16400 | 1.30 | 56 | 5.50 | 9.42 | 352 | 34.54 | 6.85 |
The Shaft and the motor performance such as voltage and speed can be custom made.
PLS download PDF spec for referrence.
RF-370CH.pdf
WHY US:
Professional international sales team
Quickly response within 24h
100% inspection
Using good quality raw material
High quality export package
Custom made shaft
Shipping way:
Fedex, TNT, UPS, DHL HK
FAQ
Q: Can you make a motor with custom specifications?
A: Definitely yes, that’s the aim we work for, we provide customized motor with valued add service for our clients.
Q: What’s the capacity per month?
A: Over One Million pieces per month for all DC Motor series.
Q: Where is your plant?
A: Located in Shenzhen city, Guangdong province, China.
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.
Q: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.
Q: What kind of motors you can provide?
A: For now, we mainly provide permanent magnet brushed dc motors (including vibration motors, low voltage dc motors and high voltage dc motors) with diameter range in 4~42mm, 24-42mm brushless dc motor and also Dia6~80mm size gear motors.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 50% T/T in advance ,balance before shippment.
Q: Do you have individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.
