Low cost metal brush or carbon brush mini automobile dc motor RC 280
Model: RC-280
Tytical Application:
Wireless control model
Precious instruments
Automobile
Electric toys
Features:
| Carbon brush or precious metal brush |
| Oil-impregnated bearing |
| 12v 24v voltage |
| Round shape |
| 2.0mm shaft diameter |
| 20-40g.cm rated load |
| Varistor inside |
| Female terminal |
| Class F Magnet Wire |
| Stainless steel shaft |
| 0.05-0.5mm end play |
| 24mm diameter |
| 30mm housing length |

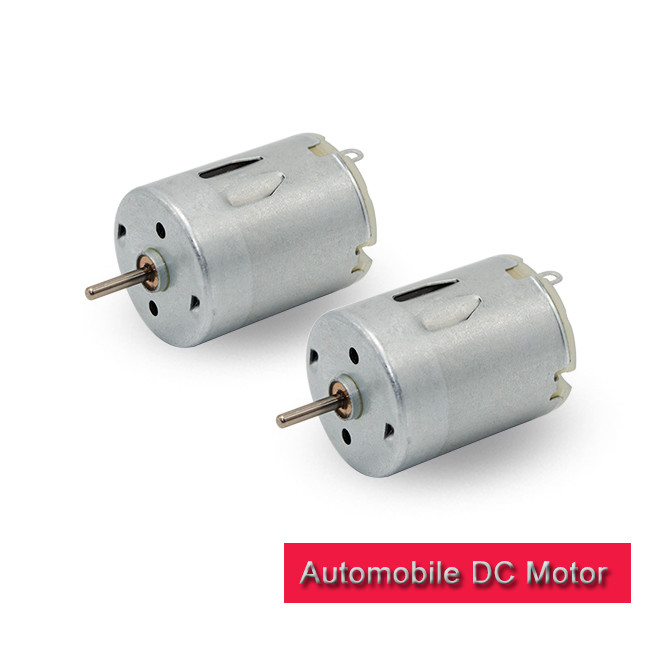

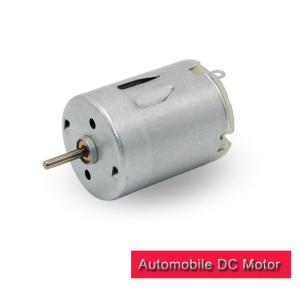

Product Showcase:

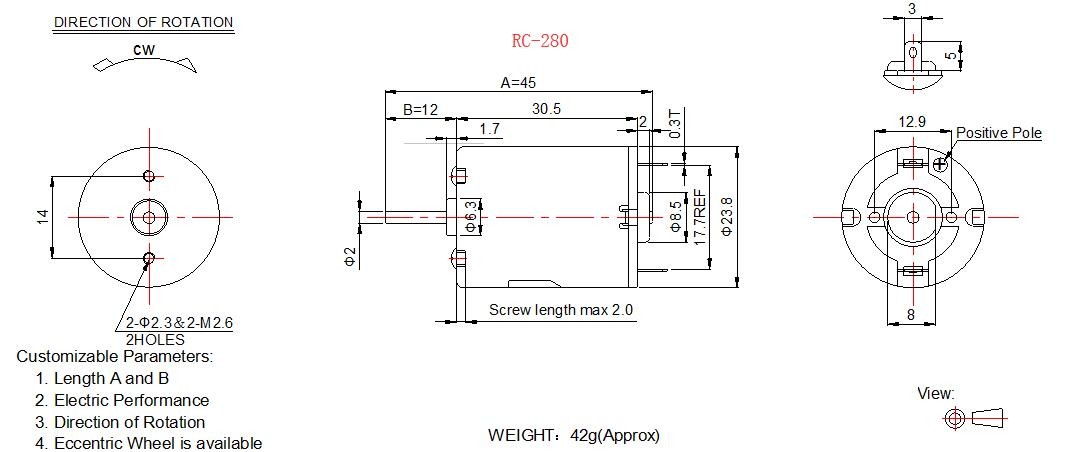

Outline Drawing:

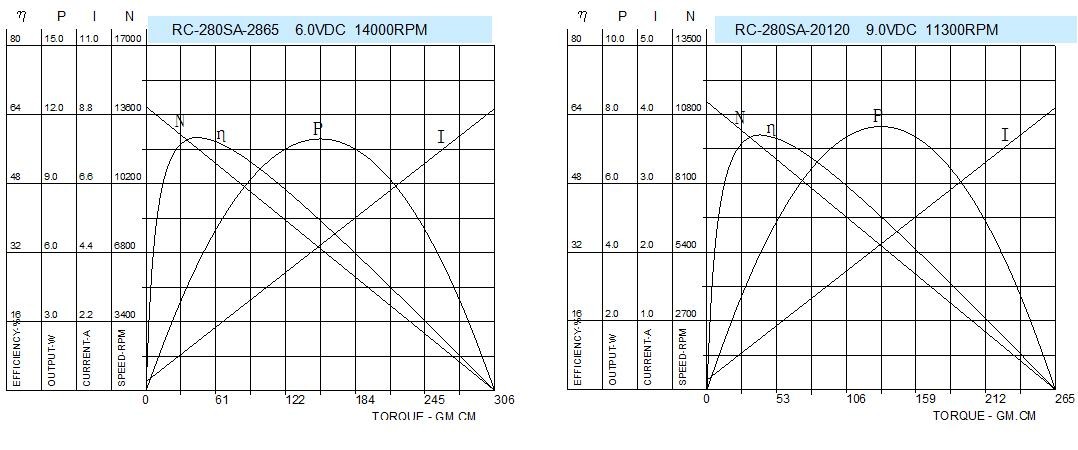

Motor Performance:
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | mN.m | W | g.cm | mN.m | A |
| RC-280SA-2865 | 2.5~7.0 | 6.0 | 14000 | 0.28 | 11901 | 1.59 | 45.9 | 4.50 | 5.60 | 306 | 30.03 | 9.00 |
| RC-280SA-20120 | 3.0~10.0 | 9.0 | 11300 | 0.14 | 9538 | 0.76 | 41.3 | 4.05 | 4.04 | 265 | 26.01 | 4.10 |
| RC-280SA-18150 | 3.0~13.0 | 12.0 | 12400 | 0.11 | 10562 | 0.61 | 44.5 | 4.37 | 4.82 | 280 | 27.48 | 3.50 |
The Shaft and the motor performance such as voltage and speed can be custom made.
PLS download PDF spec for referrence.
RC-280SA.pdf
Competitive Advantages:
10 years in manufacturing dc motor and gearbox.
Customization available.
Reasonable price with good quality product.
High Product performance: Low noise, High efficiency, long lifespan
Prompt Reply and Short Lead time
Good Service and Nice Communication.
Small orders accepted.
Sample available.
100% inspection during the production.
Shipping way:
Fedex, TNT, UPS, DHL HK
FAQ
Q: Do you have motors in stocks?
A: No, all motors are made according to the customers' requirements, so it is difficult for us to make in stocks.
Q: What is the payment terms?
A: T/T, Western Union, Paypal, etc, easy for your business.
Q: What information you need provide if you want we recommend motors for you?
A: You need provide the basic specification of the motor, like: Dimesnion, Application, Voltage, Speed and Torque. If you have samples or drawings, it's better you can send it to us.
Q: Do you have individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.
Q: Can I have samples for testing first?
A: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
Q: What certifications do you have?
A: We currently have CE and ROSH certifications.
Q: Can you send me your price list?
A: Since we have hundreds of different products, and price varies per different specifications, we are not able to offer a price list. But we can quote within 24 hours once got your inquirues to make sure you can get the price in time.
Q: Can I visit your company?
A: Yes, welcome to visit our company, but please let us know at least two weeks in advance to help us make sure no other meetings during the day you visit us. Thanks!
