45mm 12v 24v 4900rpm dc vibration motor with ball bearing for sieving machine
Model No.: RS-450SA
Features:
Permanent magnet
Ball bearing
Plastic end cap
45mm housing diameter
3 slots rotor
Powder metallurgy eccentric wheel
12-24v voltage range

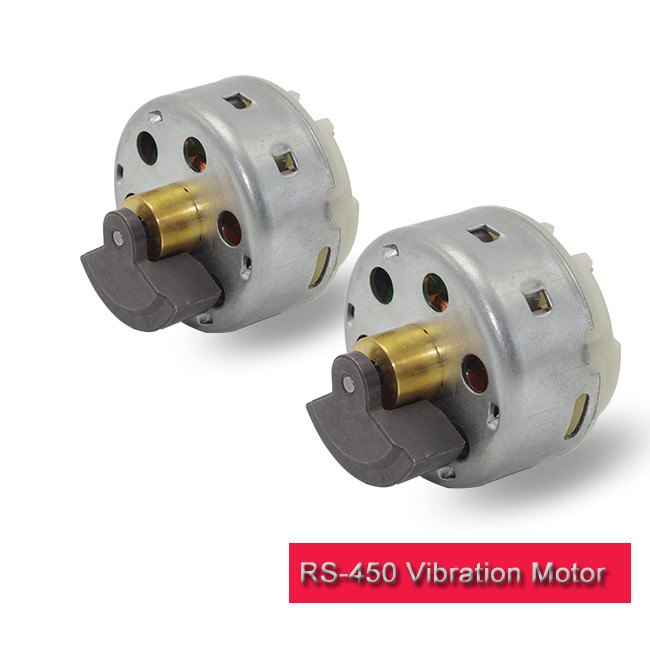

Product Showcase:

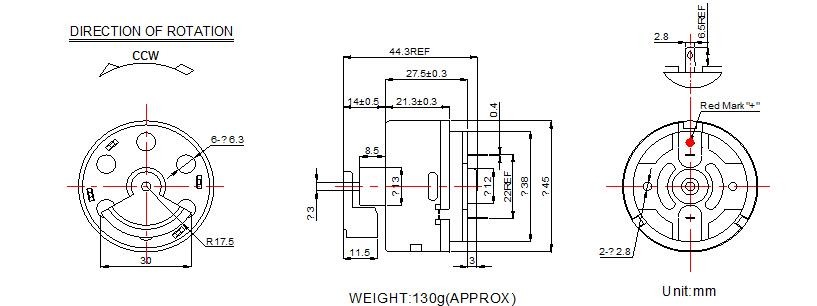

Outline Drawing:
Motor Performance:
| MODEL | VOLTAGE | VOLTAGE | RATED PERFORMANCE | STALL CURRENT |
| VOLTAGE RANGE | NOMINAL | SPEED | CURRENT | LOAD |
| V | V | rpm | A | mm | A |
| RS-450SA-13480 | 6.0~26.0 | 24 | 5 | 4900 | 0.12 | R17.5×11.5 | 1.38 |
| RS-450SA-21198 | 6.0~15.0 | 12 | 3 | 1800 | 0.08 | R17.5×11.5 | 0.42 |
| RS-450SA-12580 | 6.0~26.0 | 24 | 5 | 4000 | 0.1 | R17.5×11.5 | 1.00 |
The shaft length and motor performance can be custom made, such as the voltage and speed.
FAQ
Q: How to select a suitable motor?
A: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you have customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q: Do you have individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders
Q: What's your payment term?
A: For all our new customers, we will need 40% deposite, 60% paid before shipment.
Q: When will you reply after got my inquiries?
A: We will response within 24 hours once get your inquires.
