High Quality Metal / carbon brush 6v 12v mini dc motor for home appliance
Model No.: FF-180PH/FK-180PH
Applications:
Tattoo machine
Small home appliance
Electric toys
Features:
Metal brush or carbon brush
20.4*15.4mm flat housing
Oil-impregnated bearing
Class B copper wire
Can add eccentric wheel
We can provide special gears on the shaft

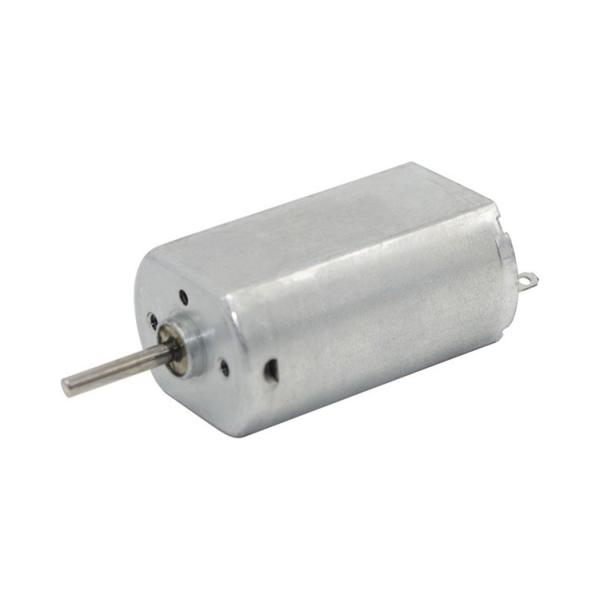

Product Showcase:
2D Drawing:

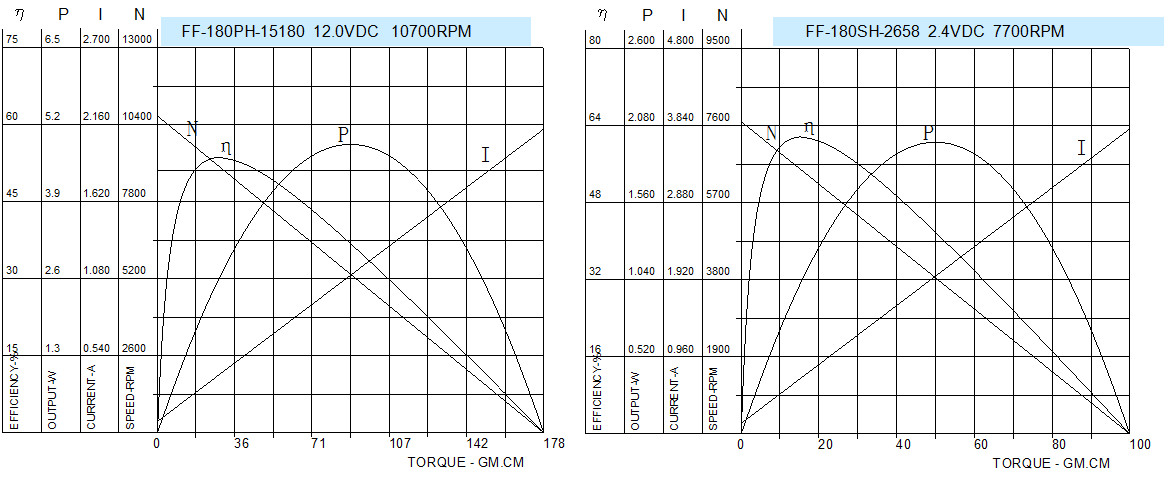

Motor Performance:
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | mN.m | W | g.cm | mN.m | A |
| FF-180PH-15180 | 3.0~12.0 | 12.0 | 10700 | 0.08 | 9000 | 0.40 | 28 | 2.75 | 2.58 | 178 | 17.47 | 2.13 |
| FF-180SH-2658 | 1.5~3.0 | 2.4 | 7700 | 0.13 | 6498 | 0.70 | 15.6 | 1.04 | 1.04 | 100 | 9.81 | 3.8 |
| FK-180NH-3244 | 3.0~12.0 | 12.0 | 31000 | 0.62 | 27000 | 5.16 | 120 | 11.78 | 33.23 | 1152 | 113.05 | 43.6 |
Pls download the PDF document for referrence.
FF-180SH.pdf
FAQ
Q: Do you have customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q: Do you have individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.
Q: Can I have samples for testing first?
A: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
Q: How do you make sure motor quality?
A: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders
