High Torque High Speed DC Motor , Small 6v DC Motor For Household Appliance

Shenzhen Tronsun Motor Co., Ltd
Contact Now

High Torque High Speed DC Motor , Small 6v DC Motor For Household Appliance

  • 1
  • 2

Brand Name : Tronsun Motor

Model Number : RF-130CH

Certification : RoHS / ISO9001

Place of Origin : China

MOQ : 100

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 500kpcs/month

Delivery Time : 15-25 working days

Packaging Details : TBD

Product name : small high torque electric motor

Voltage Range : 3v-12v

Bearing : oil-impregnated bearing

Brush Type : Metal brush or carbon brush

Shape : Round

Rotation Direction : CW / CCW

Motor diameter : 17.1mm

Motor Length : 22.8mm

Contact Now

High Torque small 6v dc motor for rail train model / high speed micro dc motor for household appliance

Model No.: RF-130CH

Applications:

Tattoo Machine

Home appliance

Medical instuments

Features:

Carbon brush or precious metal brush

17.1*22.8mm round housing

Mini oil-impregnated bearing

3 slot rotor

Varistor inside the motor

Knurling shaft available

2D Drawing:

High Torque High Speed DC Motor , Small 6v DC Motor For Household Appliance

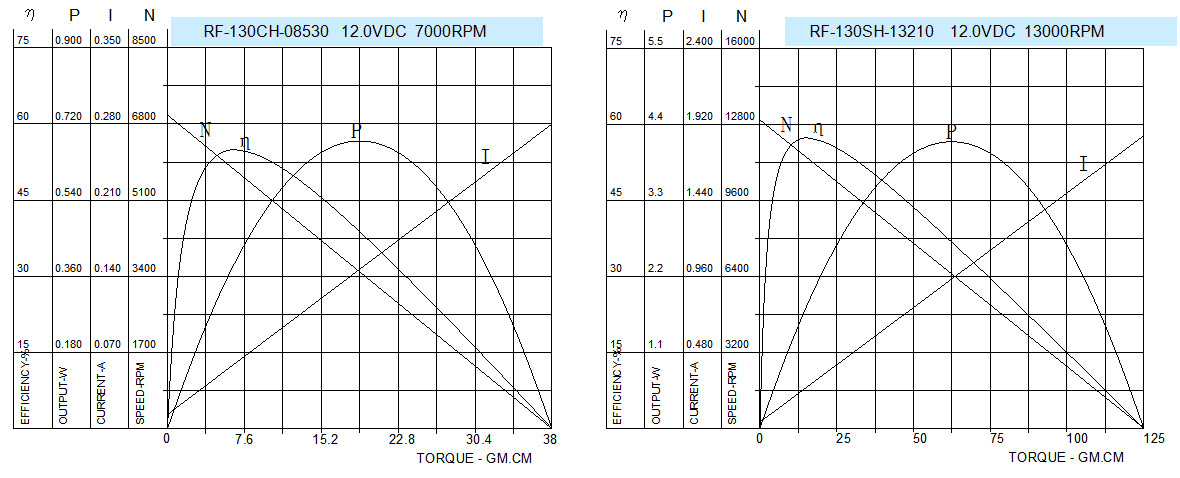

Motor Performance:


MODEL
VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A g.cm mN.m W g.cm mN.m A
RF-130CH-08530 5.0~12.0 12.0 7000 0.013 11058 0.35 6.3 0.62 0.72 38 3.73 0.28
RF-130CH-12250 3.0~6.0 6.0 8100 0.035 6600 0.16 7.7 0.76 0.56 42 4.12 0.7
RF-130SH-13210 3.0~12.0 12.0 13000 0.038 11500 0.24 14 1.37 1.65 125 12.27 1.85

High Torque High Speed DC Motor , Small 6v DC Motor For Household Appliance

Pls download the PDF document for referrence.

RF-130CH.pdf

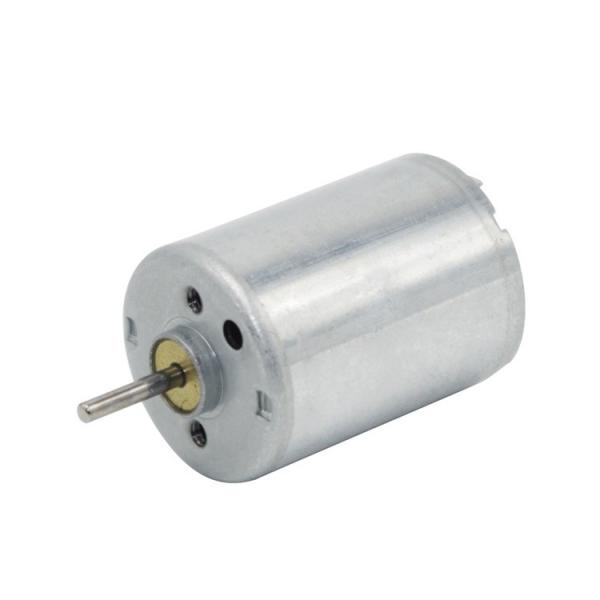

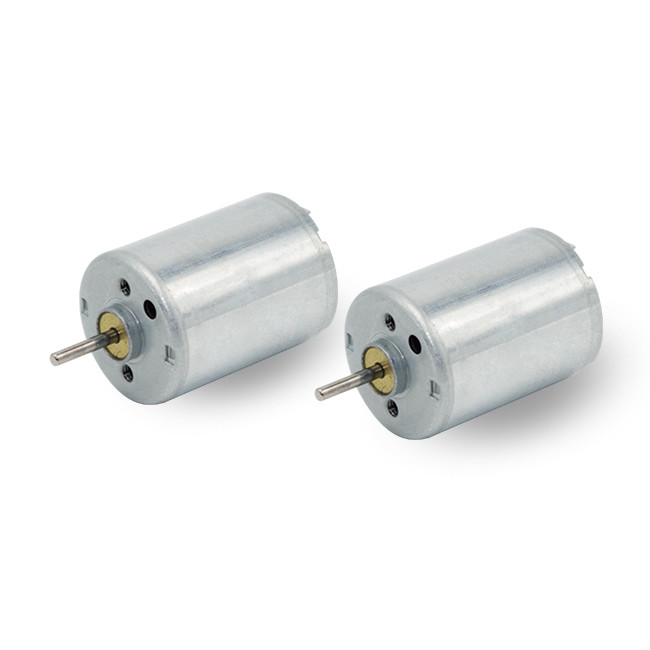

Product Showcase:

High Torque High Speed DC Motor , Small 6v DC Motor For Household Appliance

FAQ

Q: Do you have customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q: Do you have individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.

Q: Can I have samples for testing first?
A: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.

Q: How do you make sure motor quality?
A: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.

Q: What's your lead time?
A: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders

Q: What's your payment term?
A: For all our new customers, we will need 40% deposite, 60% paid before shipment.
