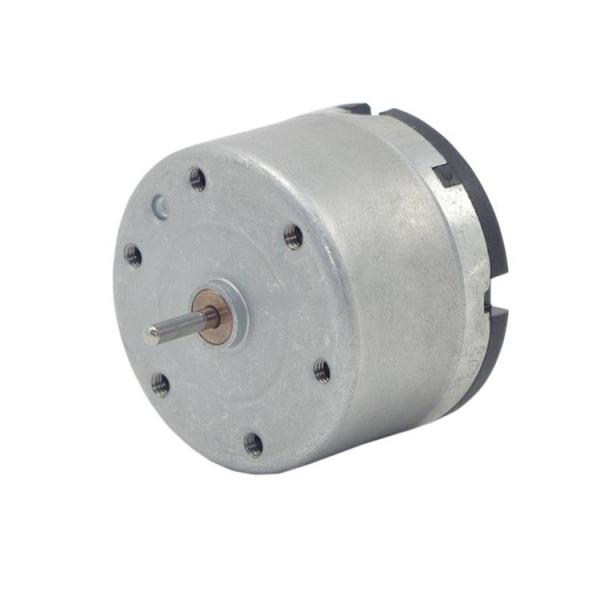

High quality high torque 32mm micro mini 5v dc motor for Air freshener
Model No.: RF-520TB
Applications:
Audiovisual equipment
Precision Instrument
Household instrument
Features:
Carbon brush or metal brush
Can assemble with 37mm gearbox
Plastic end cap
Encoder available
Low noise
Varistor inside the housing
Dual shaft available
We can put gears on the shaft
Knurling shaft available

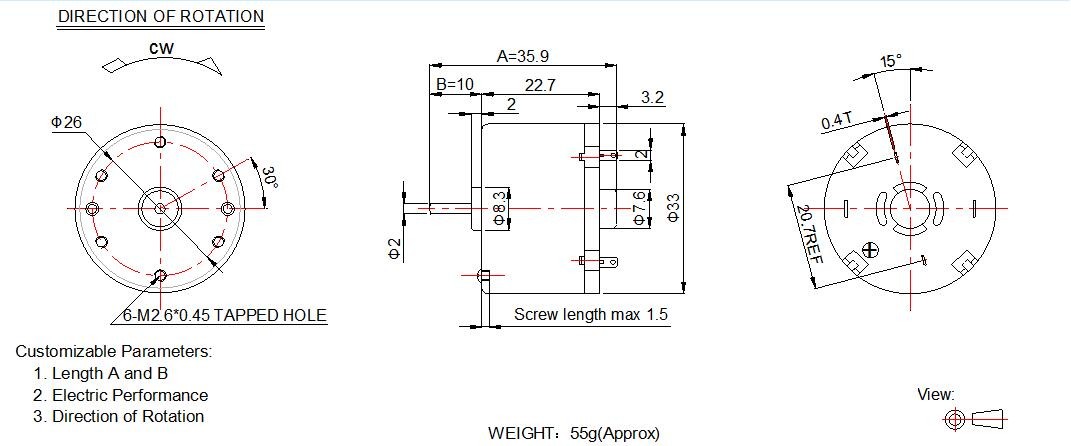

2D Drawing:

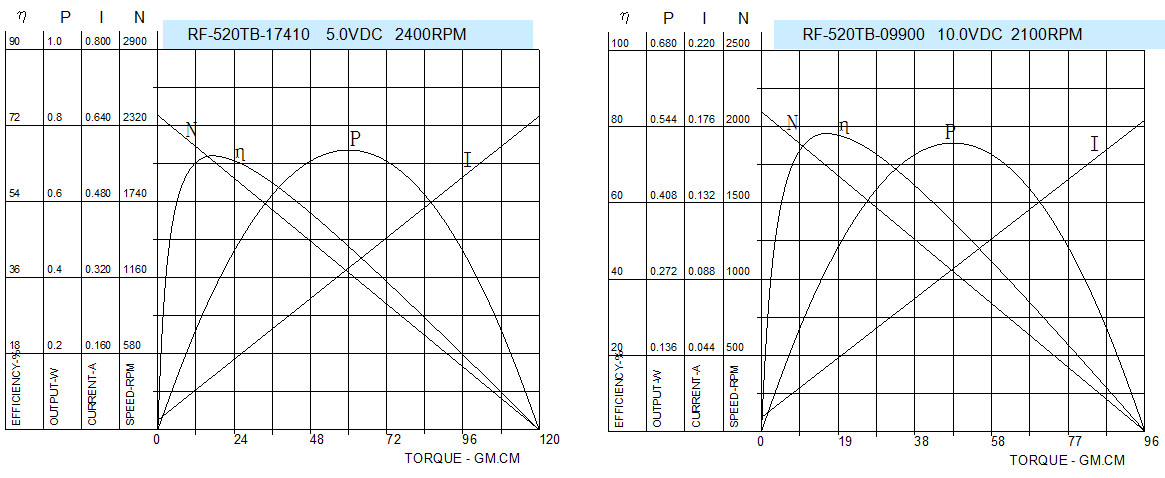

Motor Performance:
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | mN.m | W | g.cm | mN.m | A |
| RF-520TB-17410 | 3.0~6.0 | 5.0 | 2400 | 0.02 | 2044 | 0.12 | 17.8 | 1.75 | 0.37 | 130 | 12.76 | 0.66 |
| RF-520TB-09900 | 6.0~11.0 | 10.0 | 2100 | 0.008 | 1734 | 0.04 | 16.7 | 1.64 | 0.30 | 96 | 9.42 | 0.18 |
Pls download the PDF document for referrence.
RF-520TB.pdf

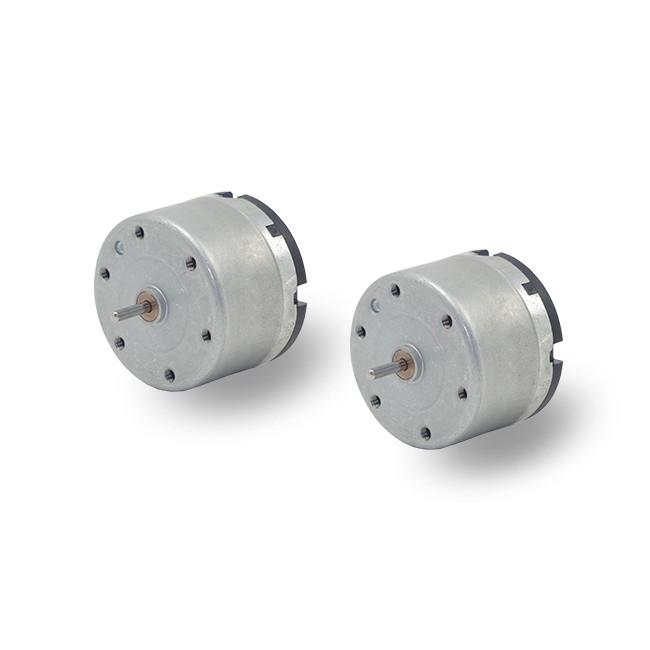

Product Showcase:
FAQ
Q: What is your MOQ?
Generally, the MOQ is 1000 pieces for our motors. But we can support you with small quantity for the first trial order .
Q: Do you have motors in stocks?
No, all motors are made according to the customers' requirements, so it is difficult for us to make in stocks.
Q: What is the payment terms?
T/T, Western Union, Paypal, etc, easy for your business.
Q: What information you need provide if you want we recommend motors for you?
You need provide the basic specification of the motor, like: Dimesnion, Application, Voltage, Speed and Torque. If you have samples or drawings, it's better you can send it to us.
Q: What's your shipping method for motors?
A: For samples and packages less than 100kg, we usually suggest express shipping; For heavy packages, we usually suggest air shipping or sea shipping. But it all depends on our customers' needs.
Q: What certifications do you have?
A: We currently have CE and ROSH certifications.
: How to select a suitable motor?
A: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you have customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q: Can I have samples for testing first?
A: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
Q: How do you make sure motor quality?
A: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
