Factory Price High quality carbon brush mini 6v 12v dc motor RS 380 385 for mini vacuum pump
Model No.: RS-380SH/RS-385SH
Application:
Water Pump
Electric toys
ID card Printer
Smart Home appliance
Features:
Carbon brush
3 or 5 slots armature
2.3mm stainless steel shaft
Double ball bearing available
Encoder available
Customize knurling shaft available

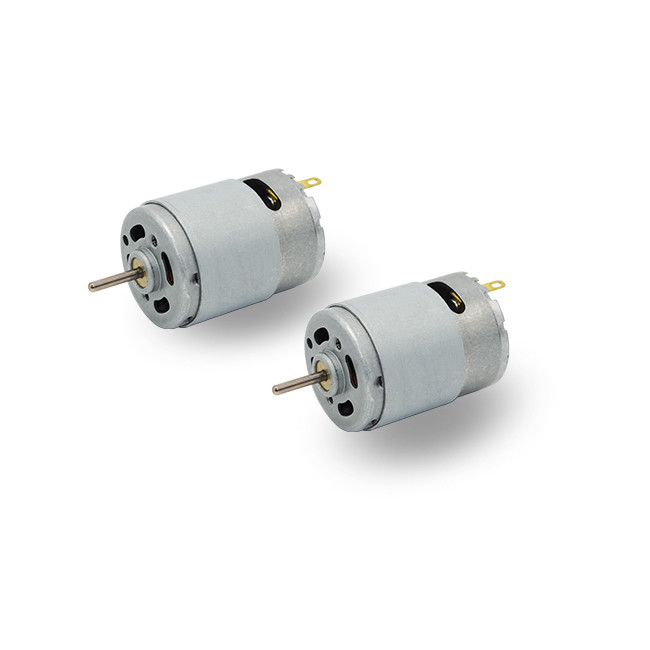

Product Showcase:

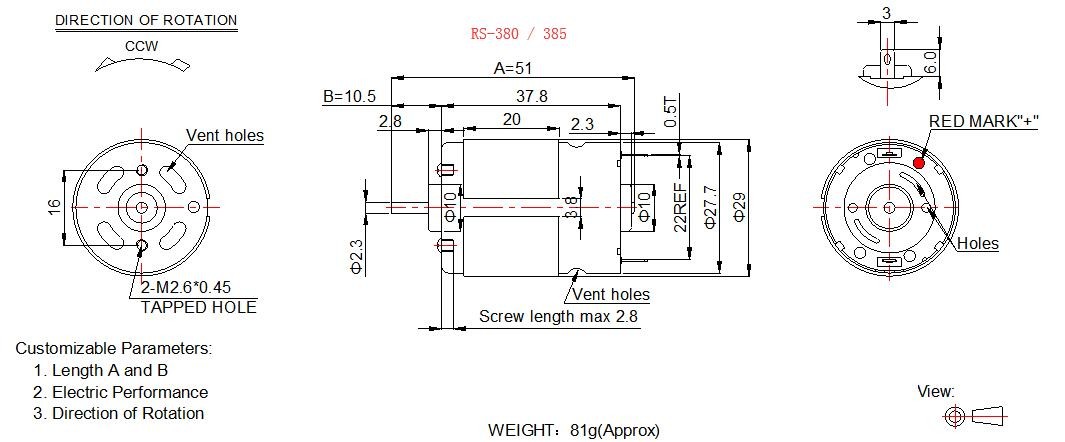

2D Drawing:
Motor Performance:
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | mN.m | W | g.cm | mN.m | A |
| RS-380SH-2775 | 3.0~7.0 | 6.0 | 8500 | 0.38 | 6938 | 1.69 | 89.1 | 8.74 | 6.34 | 485 | 47.60 | 7.50 |
| RS-385SH-14125 | 6.0~24.0 | 24.0 | 10600 | 0.14 | 8465 | 0.56 | 87.6 | 8.60 | 7.61 | 435 | 42.69 | 2.20 |
| RS-385SH-15130 | 5.0~13.0 | 12.0 | 4900 | 0.08 | 3805 | 0.29 | 56 | 5.50 | 2.19 | 265 | 26.01 | 1.08 |
| RS-380SH-3555R | 5.0~13.0 | 12.0 | 20000 | 0.5 | 17500 | 3.80 | 150 | 14.72 | 26.92 | 1266 | 124.24 | 28.60 |
Pls download the PDF document for referrence.
RS-380SH.pdf
FAQ
Question 1: What's your main products?
Answer: Dia4~42mm DC Micro Motor and Gear Motor,Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor,Spur Gear motor, Micro Motor, Vibration motor etc.
Question 2: What's the main usage of the micro dc gear motor?
Answer: Our motor widely used in Home Appliance,Office Equipment,Health-care appliance,Sanitation industry, High-class toy,Banking System,Electronic and electrical tools,automation industry, bank equipments,payment equipments,vending machines,power door lock,electric door lock.
Question 3: Do you accept customize?
Answer: Sure,as we have a strong design team,any problems will get our technical answer.
Question 4:What kind of data do i neet to provide if i want to order?
Answer: Please kindly tell us your voltage,speed,torque and overall dimension.
