High Quality 12mm metal gearbox 3v 6v 12v mini dc gear motor with long screw shaft for door lock
Model No.: 12GFN20
Applications:
Smart door lock
Smart robots
Smart Home appliance
Precision instruments
Features:
M3/M4 threade shaft available
N20 metal brush or carbon brush motor
3v -12v rated voltage
Encoder available
Wire soldering available
Varistor inside the motor

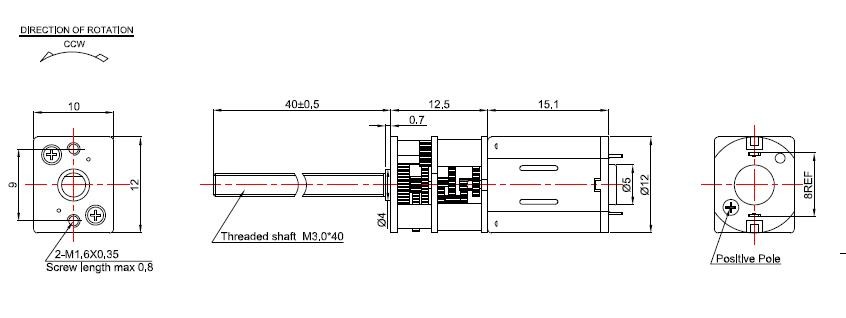

2D Drawing:
GEARBOX REDUCTION RATIO:
| Gearbox Length (mm) | Stage Number | Reduction Ratio | Rated Torque | Bearable Maximum Instant Torque |
| g.cm |
| 9 | 2 | 3/1 | 5/1 | 10/1 | | | | 200 | 500 |
| 3 | 17/1 | 20/1 | 30/1 | 36/1 | | | 300 | 600 |
| 4 | 50/1 | 75/1 | 100/1 | | | | 400 | 800 |
| 5 | 150/1 | 210/1 | 250/1 | 298/1 | 380/1 | | 500 | 1200 |
| 12.5 | 7 | 625/1 | 1000/1 | | | | | 800 | 1600 |
Motor Performance:
MODEL | REDUCTION RATIO | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | W | g.cm | A |
| 12GFN20-298-0675E | 298/1 | 3.0~6.0 | 6.0 | 75 | 0.07 | 63 | 0.22 | 600 | 0.39 | 3868 | 1.07 |
| 12GFN20-150-06130E | 150/1 | 3.0~6.0 | 6.0 | 130 | 0.06 | 100 | 0.22 | 350 | 0.36 | 1596 | 0.77 |
| 12GFN20-50-06310E | 50/1 | 3.0~6.0 | 6.0 | 310 | 0.06 | 196 | 0.2 | 200 | 0.40 | 545 | 0.46 |
| 12GFN20-210-06133E | 210/1 | 3.0~6.0 | 6.0 | 133 | 0.07 | 103 | 0.41 | 700 | 0.74 | 3160 | 1.61 |
| 12GFN20-30-061000E | 30/1 | 3.0~6.0 | 6.0 | 1000 | 0.075 | 820 | 0.4 | 100 | 0.84 | 550 | 1.92 |
| 12GFN20-1000-0614E | 1000/1 | 3.0~6.0 | 6.0 | 14 | 0.035 | 12.3 | 0.06 | 600 | 0.08 | 4968 | 0.33 |
Pls download the PDF document for referrence.
12GFN20.pdf

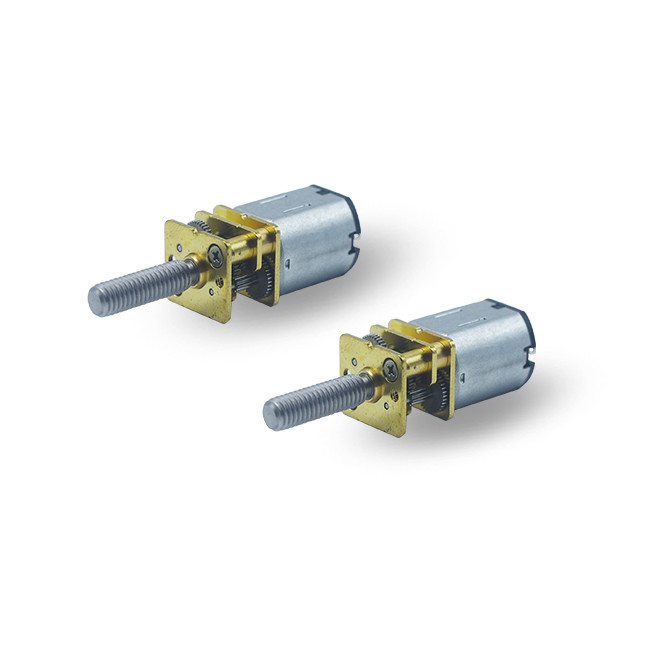

Product Showcase:
RFQ
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.
Q: What's your shipping method for motors?
A: For samples and packages less than 100kg, we usually suggest express shipping; For heavy packages, we usually suggest air shipping or sea shipping. But it all depends on our customers' needs.
Q: What certifications do you have?
A: We currently have CE and ROSH certifications.
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders
