High torque 13mm square metal gearbox with 050 dc motor 6v 12v mini geared dc motor for home appliance
Model No.: 13GF050
Applications:
Smart Door lock
Smart home appliance
Toy robots
Printer
Features:
13mm metal spur gearbox
Output power 0.2-3W
Precious metal brush motor
Encoder available
Dual shaft available
We can make threaded output shaft

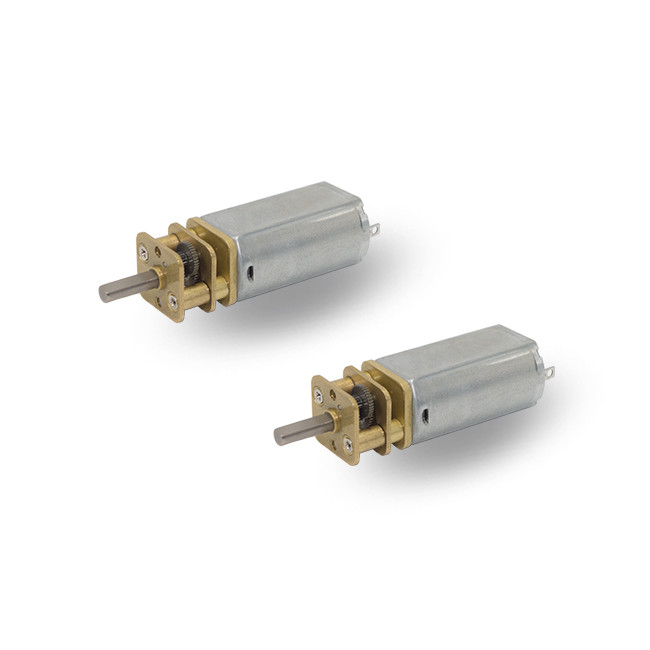

Product Showcase:

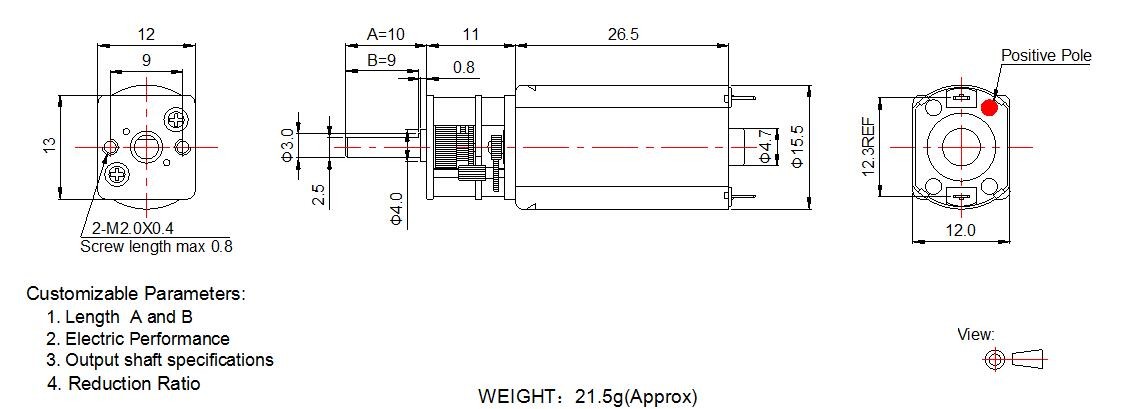

2D Drawing:
GEARBOX REDUCTION RATIO:
| Gearbox Length (mm) | Stage Number | Reduction Ratio | Rated Torque | Bearable Maximum Instant Torque |
| g.cm |
| 11 | 2 | 3/1 | 7/1 | 10/1 | | | | 200 | 500 |
| 4 | 20/1 | 30/1 | 35/1 | 50/1 | 63/1 | 86/1 | 300 | 600 |
| 5 | 115/1 | 150/1 | 210/1 | 250/1 | 360/1 | | 500 | 1200 |
Motor Performance:
MODEL | REDUCTION RATIO | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | W | g.cm | A |
| 13GF050-150-0374 | 150/1 | 2.0~4.0 | 3.0 | 74 | 0.11 | 60 | 0.46 | 610 | 0.38 | 3130 | 1.9 |
| 13GF050-70-12200 | 70/1 | 5.0~12.0 | 12.0 | 200 | 0.046 | 160 | 0.19 | 420 | 0.69 | 2160 | 0.8 |
| 13GF050-210-0638 | 210/1 | 3.0~7.0 | 6.0 | 38 | 0.09 | 31 | 0.37 | 1400 | 0.45 | 7320 | 1.52 |
| 13GF050-50-06240 | 50/1 | 3.0~7.0 | 6.0 | 240 | 0.07 | 192 | 0.3 | 300 | 0.59 | 1520 | 1.3 |
Pls download the PDF document for referrence.
13GF050.pdf
FAQ
Q: Do you have customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q: Do you have individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.
Q: Can I have samples for testing first?
A: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
Q: How do you make sure motor quality?
A: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
Product Tags:
|
|

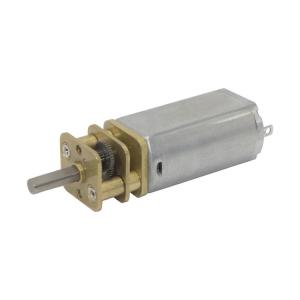

6v 12v DC Gear Motor High Torque Square Micro Metal Gearmotor 13mm Diameter Images
|
