High Quality single shaft plastic gearbox with 130 dc motor 3v 6v plastic gear motor for DIY toys

Name: High Quality single shaft plastic gearbox with 130 dc motor 3v 6v plastic gear motor for DIY toys
Brand: Tronsun Motor
Price: 1 USD

China High Quality single shaft plastic gearbox with 130 dc motor 3v 6v plastic gear motor for DIY toys wholesale

Brand Name : Tronsun Motor

Model Number : T130-01

Certification : RoHS / ISO9001

Place of Origin : China

MOQ : 100

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 500kpcs/month

Delivery Time : 15-25 working days

Packaging Details : TBD

Product name : Plastic gear motor

Voltage Range : 3v-12V

Gearbox type : Spur gearbox

Reduction ratio : 48/1-288/1

Weight : 30g

Application : DIY Toys

Gearbox : Plastic

Rotation : CW/CCW

Contact Now

High Quality single shaft plastic gearbox with 130 dc motor 3v 6v plastic gear motor for DIY toys

Model No.:T130-01

Applications:

DIY toys

Toy cars

Toy robots

Features:

130 carbon brush dc motor

Plastic gearbox

4 stages spur gearbox

Dual shaft available

Car wheel available

Wire solidering available

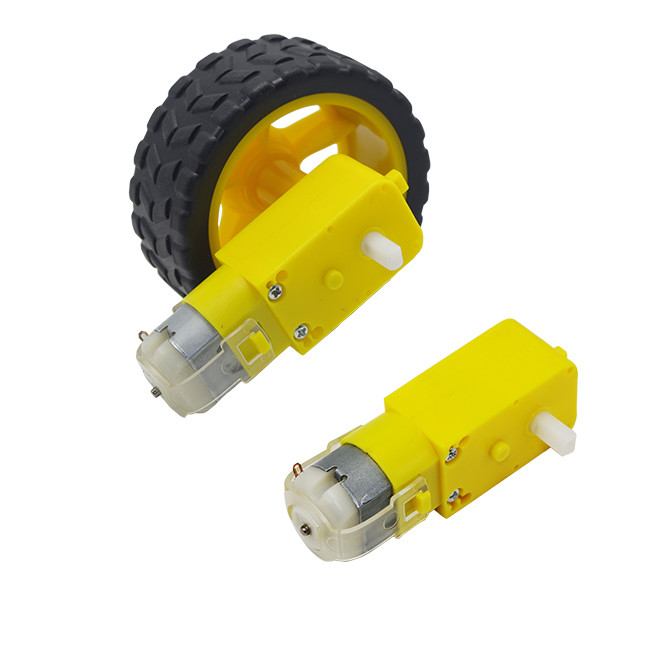

Product Showcase:

High Quality single shaft plastic gearbox with 130 dc motor 3v 6v plastic gear motor for DIY toys

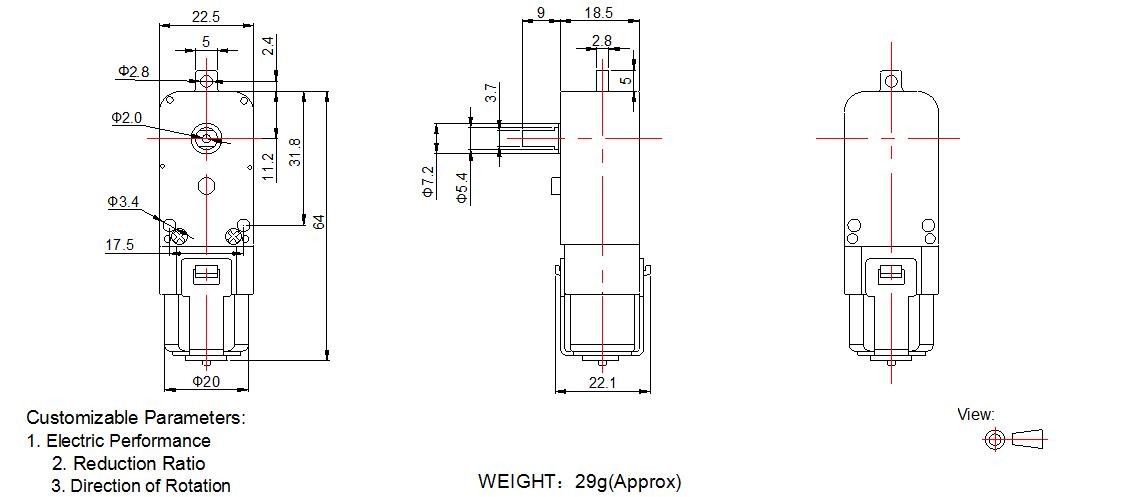

2D Drawing:
High Quality single shaft plastic gearbox with 130 dc motor 3v 6v plastic gear motor for DIY toys
GEARBOX REDUCTION RATIO:

Gearbox Length (mm)

Stage Number

Reduction Ratio

Rated Torque

Bearable Maximum Instant Torque

kg.cm

64*22.5*18.5

48/1

120/1

180/1

220/1

256/1

288/1

1.0

3.0

Motor Performance:

MODEL	REDUCTION RATIO	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
		OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
		OPERATING RANGE	V	rpm	A	rpm	A	kg.cm	W	kg.cm	A
T130-01-06500	48/1	3.0~7.0	6.0	500	0.21	416	1.04	0.4	1.71	2.4	5.2
T130-01-06200	120/1	3.0~7.0	6.0	200	0.21	415	1.06	1.0	4.26	5.9	5.2
T130-01-09175	48/1	3.0~10.0	9.0	175	0.09	133	0.17	0.3	0.41	1.3	0.55
T130-01-0938	220/1	3.0~10.0	9.0	38	0.09	31	0.14	1.0	0.32	5.8	0.55
T130-01-1260	220/1	3.0~13.0	12.0	60	0.05	48	0.2	1.5	0.74	5.8	0.85

Pls download the PDF document for referrence.

T130-01.pdf

FAQ

Q: What's your lead time?
A: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders

Q: What's the minimum order quantity?
A: Our minimum order quantity depends on different motor models, please email us to check. Also, we usually do not accept personal use motor orders.

Q: What's your shipping method for motors?
A: For samples and packages less than 100kg, we usually suggest express shipping; For heavy packages, we usually suggest air shipping or sea shipping. But it all depends on our customers' needs.
