High Quality dual shaft 3v dc gear motor 6v 130 dc motor with plastic gearbox for toy cars

Product Categories

Shenzhen Tronsun Motor Co., Ltd

Contact Now

High Quality dual shaft 3v dc gear motor 6v 130 dc motor with plastic gearbox for toy cars

Name: High Quality dual shaft 3v dc gear motor 6v 130 dc motor with plastic gearbox for toy cars
Brand: Tronsun Motor
Price: 1 USD

China High Quality dual shaft 3v dc gear motor 6v 130 dc motor with plastic gearbox for toy cars wholesale

Brand Name : Tronsun Motor

Model Number : T130-02

Certification : RoHS / ISO9001

Place of Origin : China

MOQ : 100

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 500kpcs/month

Delivery Time : 15-25 working days

Packaging Details : TBD

Product name : Plastic gear motor

Voltage Range : 3v-12V

Gearbox type : Spur gearbox

Reduction ratio : 48/1-288/1

Weight : 30g

Application : DIY Toys

Rotation : CW/CCW

Motor : 130 toy motor

Contact Now

High Quality dual shaft 3v dc gear motor 6v 130 dc motor with plastic gearbox for toy cars

Model No.: T130-02

Applictions:

DIY Toys

Electric toys

Toy cars

Features:

Plastic spur gearbox

Dual shaft

130 metal brush or carbon brush motor

3v-12v voltage range

0.5-5W ouotput power

Wire soldering available

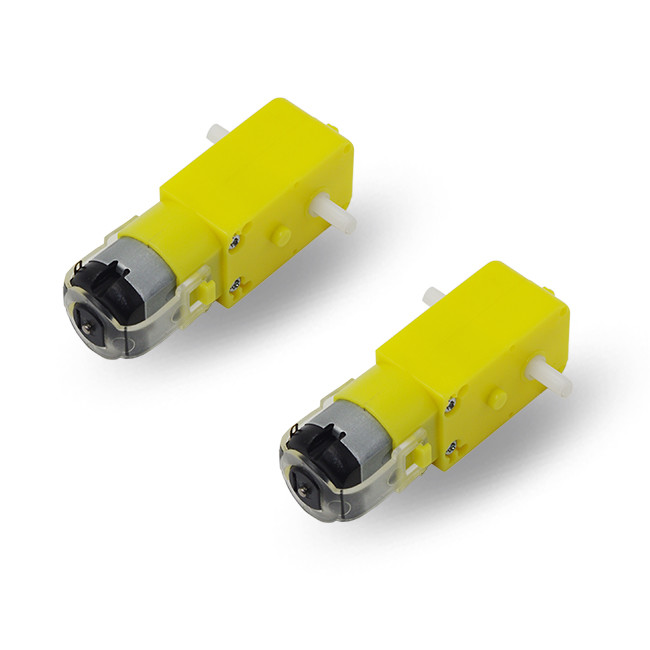

Product Showcase:

High Quality dual shaft 3v dc gear motor 6v 130 dc motor with plastic gearbox for toy cars

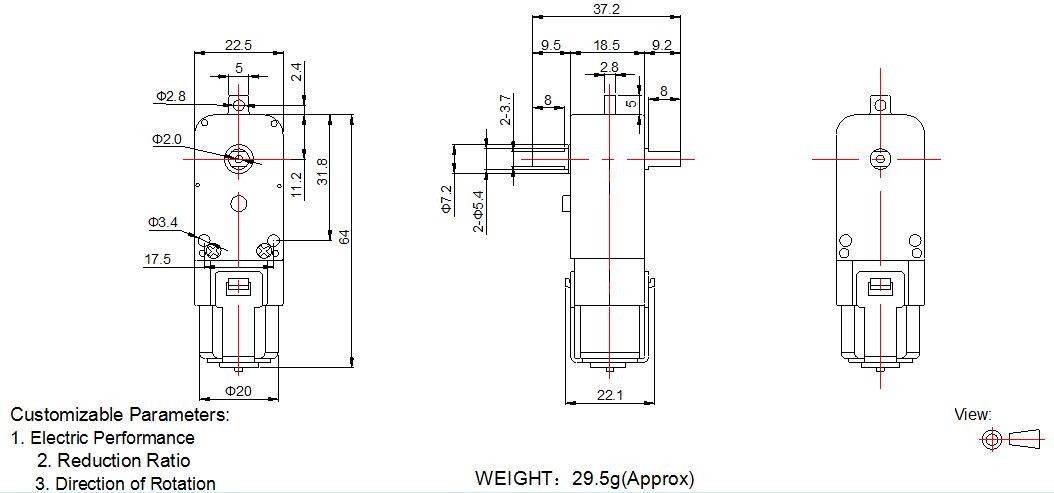

2D Drawing:
High Quality dual shaft 3v dc gear motor 6v 130 dc motor with plastic gearbox for toy cars
GEARBOX REDUCTION RATIO:

Gearbox Length (mm)

Stage Number

Reduction Ratio

Rated Torque

Bearable Maximum Instant Torque

kg.cm

64*22.5*18.5

48/1

120/1

180/1

220/1

256/1

288/1

1.0

3.0

Motor Performance:

MODEL	REDUCTION RATIO	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
		OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
		OPERATING RANGE	V	rpm	A	rpm	A	kg.cm	W	kg.cm	A
T130-02-06500	48/1	3.0~7.0	6.0	500	0.21	416	1.04	0.4	1.71	2.4	5.2
T130-02-06200	120/1	3.0~7.0	6.0	200	0.21	415	1.06	1.0	4.26	5.9	5.2
T130-02-09175	48/1	3.0~10.0	9.0	175	0.09	133	0.17	0.3	0.41	1.3	0.55
T130-02-0938	220/1	3.0~10.0	9.0	38	0.09	31	0.14	1.0	0.32	5.8	0.55
T130-02-1260	220/1	3.0~13.0	12.0	60	0.05	48	0.2	1.5	0.74	5.8	0.85

Pls download the PDF document for referrence.

T130-02.pdf

FAQ

Q: Can you make a motor with custom specifications?

A: Definitely yes, that’s the aim we work for, we provide customized motor with valued add service for our clients.

Q: What’s the capacity per month?
A: Over One Million pieces per month for all DC Motor series.

Q: Where is your plant?
A: Located in Shenzhen city, Guangdong province, China.

Q: Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM
