High Torque performance custom made 36mm RS 555 dc motor with planetary gearbox 12v 24v dc gear motor
Model No.: 36PA555
Applications:
Smart Home appliance
Power tools
Vending Machine
Electric curtains
Features:
36mm planetary gearbox
8mm output shaft
Output power 5-80W
RS-555 carbon brush dc motor
3 or 5 slots rotor
Encoder available

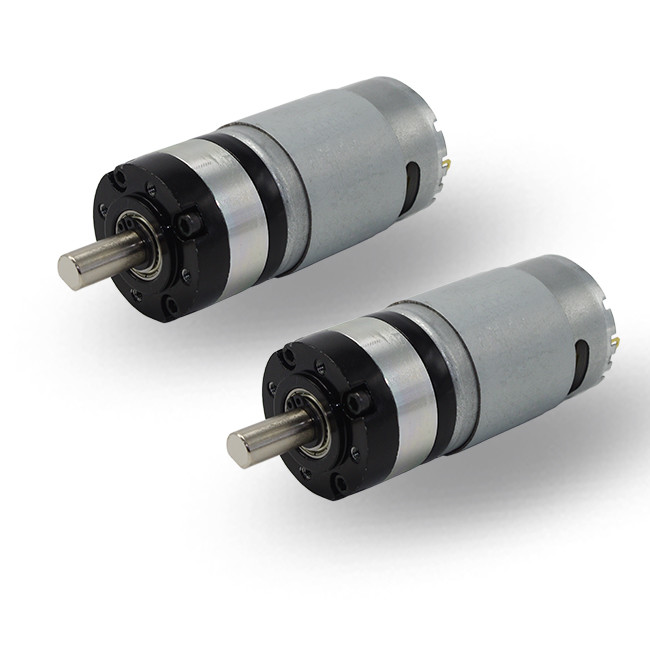

Product Showcase:

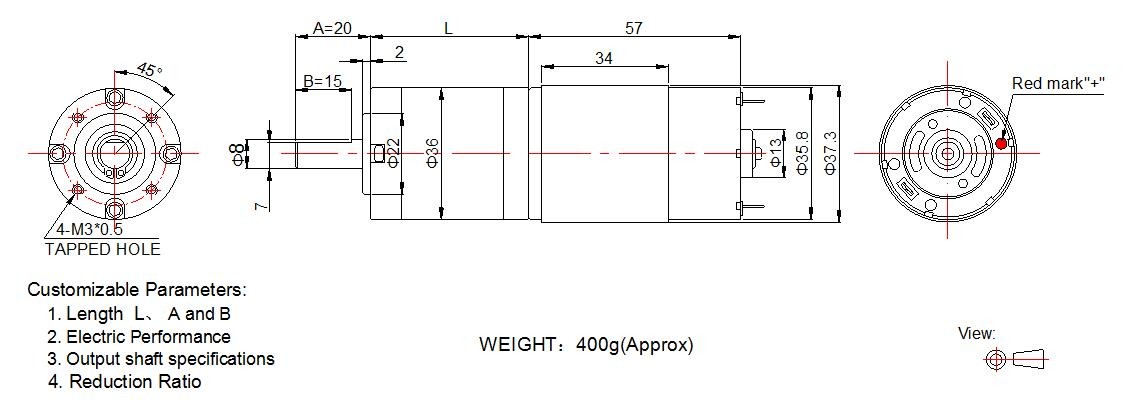

2D Drawing:
GEARBOX REDUCTION RATIO:
| Gearbox Length (mm) | Stage Number | Reduction Ratio | Rated Torque | Bearable Maximum Instant Torque |
| kg.cm |
| 26.5 | 1 | 3.7/1 | 5.2/1 | | | | | 8.0 | 20.0 |
| 34.5 | 2 | 14/1 | 19/1 | 27/1 | | | | 15.0 | 30.0 |
| 42.5 | 3 | 51/1 | 71/1 | 100/1 | 139/1 | | | 25.0 | 50.0 |
| 50.5 | 4 | 189/1 | 264/1 | 369/1 | 515/1 | 721/1 | | 30.0 | 60.0 |
| 58.5 | 5 | 977/1 | 1367/1 | 1910/1 | 2671/1 | 3736/1 | | 45.0 | 80.0 |
Motor Performance:
MODEL | REDUCTION RATIO | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | kg.cm | W | kg.cm | A |
| 36PA555-19-12560 | 19/1 | 5.0~13.0 | 12.0 | 560 | 0.75 | 480 | 4.5 | 5.5 | 27.08 | 38.5 | 27.6 |
| 36PA555-71-12150 | 71/1 | 5.0~13.0 | 12.0 | 150 | 0.75 | 129 | 4.5 | 18 | 23.82 | 127.8 | 27.6 |
| 36PA555-139-1276 | 139/1 | 5.0~13.0 | 12.0 | 76 | 0.75 | 65 | 4.6 | 35 | 23.33 | 243.5 | 27.6 |
| 36PA550-264-2428 | 264/1 | 60~25.0 | 24.0 | 28 | 0.28 | 25 | 1.15 | 40 | 10.26 | 400.7 | 9 |
| 36PA550-27-24270 | 27//1 | 6.0~25.0 | 24.0 | 270 | 0.43 | 216 | 1.8 | 10 | 22.15 | 50.3 | 9 |
