Smart Robot Micro Metal Gearmotor / 16mm Small Brushed DC Motor 3v 6v 12v

Name: Smart Robot Micro Metal Gearmotor 16mm Small Brushed DC Motor 3v 6v 12v
Brand: Tronsun Motor
Price: 1 USD

China Smart Robot Micro Metal Gearmotor / 16mm Small Brushed DC Motor 3v 6v 12v wholesale

Brand Name : Tronsun Motor

Model Number : 16GA030/16GA050

Certification : RoHS

Place of Origin : China

MOQ : 100

Price : Negotiation

Payment Terms : T/T, Paypal

Supply Ability : 500kpcs/month

Delivery Time : 25 Working Days

Packaging Details : TBD

Other Name : Spur Gear Motor

Gearbox Size : 16mm

Voltage Range : 3-12v

Gear Reduction Ratio : 11.5/1-889/1

Motor Type : Brush

Typical Appliacation : Smart Robot

Shaft : 3mm

Material : RoHS

Contact Now

High Precision 16mm metal spur gearbox with small brush dc motor 3v 6v 12v geared motor

Model: 16GA030 / 16GA050

Characters:

16mm round Spur metal gearbox

Encoder available for 16GA050

0.1-1kg.cm load

Varied speed

Tytical Application:

Electronic door lock

Smart home appliance

Electric toys

Medical Instrument

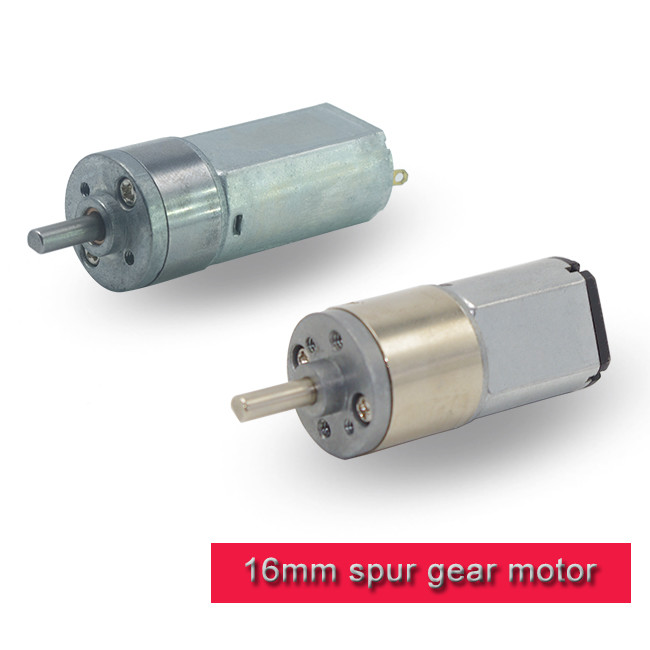

Product Showcase:

Smart Robot Micro Metal Gearmotor / 16mm Small Brushed DC Motor 3v 6v 12v

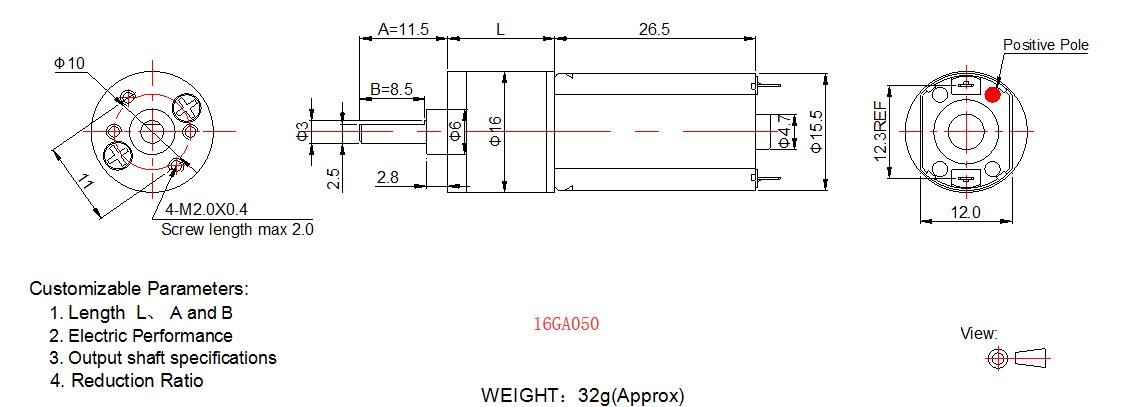

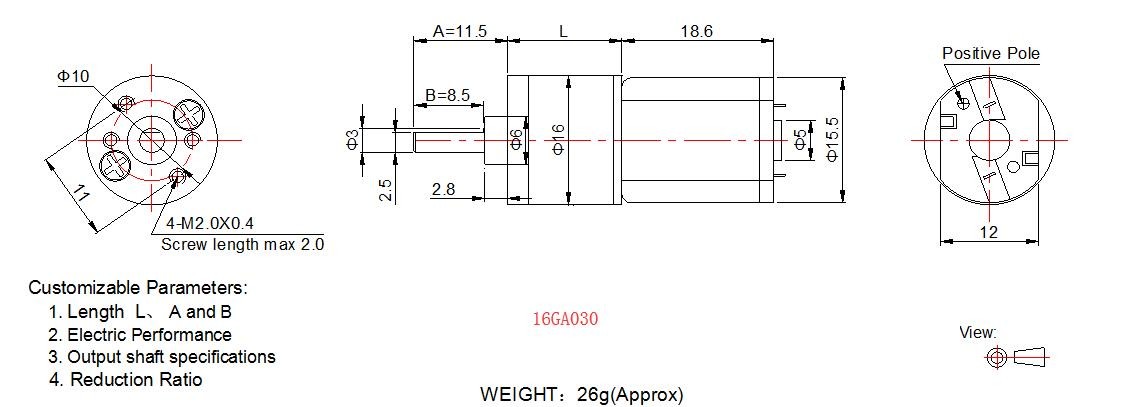

Outline Drawing:

Smart Robot Micro Metal Gearmotor / 16mm Small Brushed DC Motor 3v 6v 12v

Gearbox Reduction Ratio:

Gearbox Length (mm)	Stage Number	Reduction Ratio						Rated Torque	Bearable Maximum Instant Torque
								kg.cm
11	3	11.5/1	14/1					0.2	0.5
12.5	4	23/1	28/1	32/1	40/1			0.3	0.7
14	5	46/1	56/1	65/1	80/1	91/1	112/1	0.4	0.8
15.5	6	130/1	159/1	183/1	224/1	257/1	315/1	0.5	1.0
17	7	365/1	448/1	515/1	630/1	725/1	889/1	0.6	1.2

Motor Performance:

MODEL	REDUCTION RATIO	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
		OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
		OPERATING RANGE	V	rpm	A	rpm	A	kg.cm	W	kg.cm	A
16GA030-14-061200	14/1	3.0~6.0	6.0	1200	0.08	945	0.06	0.06	0.58	0.29	1.12
16GA030-112-03120	112/1	2.0~4.0	3.0	120	0.1	96	0.42	0.36	0.35	1.8	1.65
16GA030-515-1225	515/1	5.0~12.0	12.0	25	0.05	19	0.16	1.6	0.31	6.45	0.48

MODEL	REDUCTION RATIO	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
		OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
		OPERATING RANGE	V	rpm	A	rpm	A	kg.cm	W	kg.cm	A
16GA050-32-06385	32/1	3.0~6.0	6.0	385	0.08	317	0.37	0.23	0.75	1.32	1.42
16GA050-91-12130	91/1	5.0~12.0	12.0	130	0.05	102	0.16	0.67	0.70	3.1	0.58
16GA050-224-0658	224/1	3.0~6.0	6.0	58	0.06	46	0.23	1.1	0.52	5.3	0.85

The Shaft and the motor performance such as voltage and speed can be custom made.

Here attached the PDF spec.

16GA030.pdf

16GA050.pdf

RFQ

Q: What's your payment term?
A: For all our new customers, we will need 40% deposite, 60% paid before shipment.

Q: When will you reply after got my inquiries?
A: We will response within 24 hours once get your inquires.

Q: What certifications do you have?
A: We currently have CE and ROSH certifications.

Q: Can you send me your price list?
A: Since we have hundreds of different products, and price varies per different specifications, we are not able to offer a price list. But we can quote within 24 hours once got your inquirues to make sure you can get the price in time.
