High torque 13mm square metal gearbox with brush dc motor 6v 12v micro dc geared motor for robot
Model No.: 13GF030
Applications:
Smart Door lock
Medical instruments
Smart home appliance
Features:
13mm spur gearbox
3mm stainless steel output shaft
Carbon brush or precious metal brush dc motor
Encoder available
Thread shaft available
We can put gears on the shaft

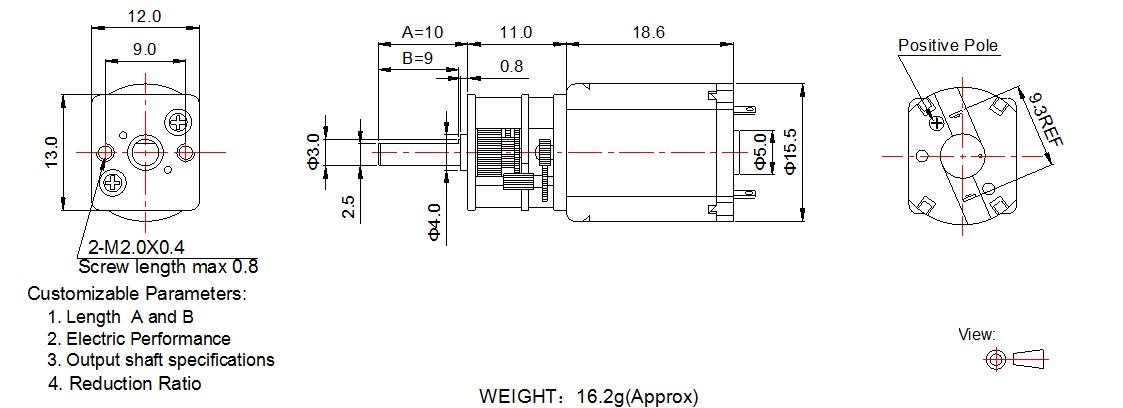

2D Drawing:
GEARBOX REDUCTION RATIO:
| Gearbox Length (mm) | Stage Number | Reduction Ratio | Rated Torque | Bearable Maximum Instant Torque |
| g.cm |
| 11 | 2 | 3/1 | 7/1 | 10/1 | | | | 200 | 500 |
| 4 | 20/1 | 30/1 | 35/1 | 50/1 | 63/1 | 86/1 | 300 | 600 |
| 5 | 115/1 | 150/1 | 210/1 | 250/1 | 360/1 | | 500 | 1200 |
Motor Performance:
MODEL | REDUCTION RATIO | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | W | g.cm | A |
| 13GF030-35-03485 | 35/1 | 2.0~4.0 | 3.0 | 485 | 0.16 | 380 | 0.51 | 130 | 0.51 | 590 | 2.1 |
| 13GF030-250-0370 | 250/1 | 2.4~4.0 | 3.0 | 70 | 0.13 | 57 | 0.54 | 690 | 0.40 | 3750 | 2.4 |
| 13GF030-210-0968 | 210/1 | 3.0~9.0 | 9.0 | 68 | 0.03 | 54 | 0.11 | 570 | 0.32 | 2700 | 0.42 |
Pls download the PDF document for referrence.
13GF030.pdf
Product Showcase:
FAQ
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders
Q: When will you reply after got my inquiries?
A: We will response within 24 hours once get your inquires.
Q: What's the minimum order quantity?
A: Our minimum order quantity depends on different motor models, please email us to check. Also, we usually do not accept personal use motor orders.
Q: Can I visit your company?
A: Yes, welcome to visit our company, but please let us know at least two weeks in advance to help us make sure no other meetings during the day you visit us. Thanks!
Q: Can you make a motor with custom specifications?
A: Definitely yes, that’s the aim we work for, we provide customized motor with valued add service for our clients.
Q: How long is the deliver[Producing] and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
