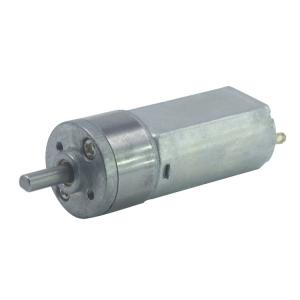

High Quality 16mm metal spur gearbox high torque low noise 6v 12v dc gear motor 16GA050 for baby shaker
Model No.: 16GA050
Applications:
Smart Robots
Education products
Smart home appliance
Medical instruments
Features:
050 precious metal brush or cabon brush motor
16mm spur gearbox
3mm Inline shaft
Encoder available
Dual shaft available
Wire soldering is acceptable

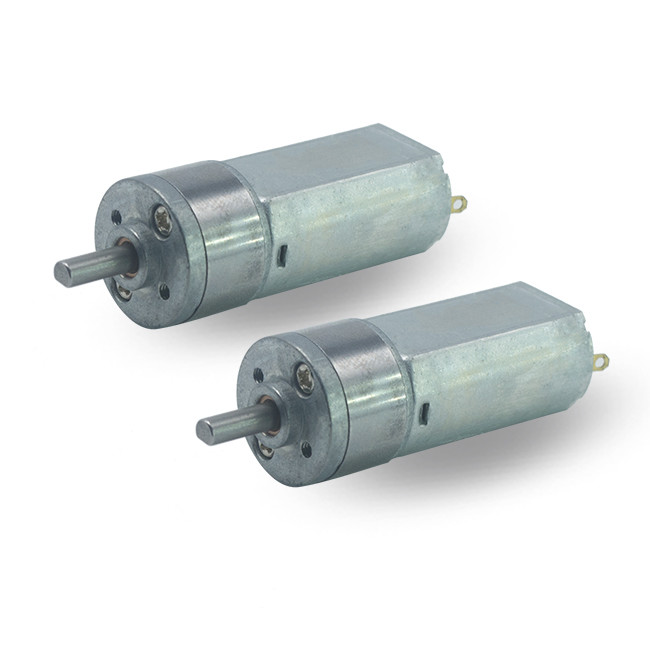

Product Showcase:

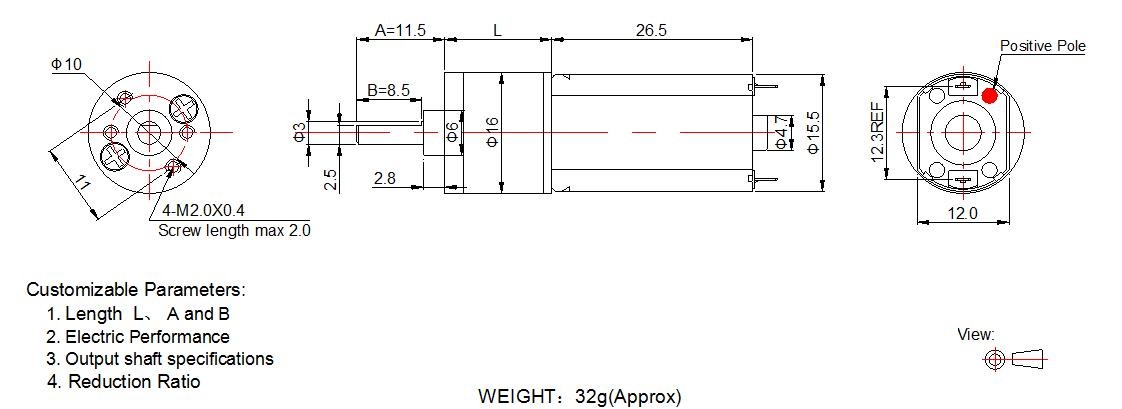

2D Drawing:
GEARBOX REDUCTION RATIO:
| Gearbox Length (mm) | Stage Number | Reduction Ratio | Rated Torque | Bearable Maximum Instant Torque |
| kg.cm |
| 11 | 3 | 11.5/1 | 14/1 | | | | | 0.2 | 0.5 |
| 12.5 | 4 | 23/1 | 28/1 | 32/1 | 40/1 | | | 0.3 | 0.7 |
| 14 | 5 | 46/1 | 56/1 | 65/1 | 80/1 | 91/1 | 112/1 | 0.4 | 0.8 |
| 15.5 | 6 | 130/1 | 159/1 | 183/1 | 224/1 | 257/1 | 315/1 | 0.5 | 1.0 |
| 17 | 7 | 365/1 | 448/1 | 515/1 | 630/1 | 725/1 | 889/1 | 0.6 | 1.2 |
Motor Performance:
MODEL | REDUCTION RATIO | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | kg.cm | W | kg.cm | A |
| 16GA050-32-06385 | 32/1 | 3.0~6.0 | 6.0 | 385 | 0.08 | 317 | 0.37 | 0.23 | 0.75 | 1.32 | 1.42 |
| 16GA050-91-12130 | 91/1 | 5.0~12.0 | 12.0 | 130 | 0.05 | 102 | 0.16 | 0.67 | 0.70 | 3.1 | 0.58 |
| 16GA050-224-0658 | 224/1 | 3.0~6.0 | 6.0 | 58 | 0.06 | 46 | 0.23 | 1.1 | 0.52 | 5.3 | 0.85 |
Pls download the PDF document for referrence.
16GA050.pdf
FAQ
Q: What is your MOQ?
A: Generally, the MOQ is 1000 pieces for our motors. But we can support you with small quantity for the first trial order .
Q: Do you have motors in stocks?
A: No, all motors are made according to the customers' requirements, so it is difficult for us to make in stocks.
Q: What is the payment terms?
A: T/T, Western Union, Paypal, etc, easy for your business.
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.
Q: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.
