Low cost Hobbed gearbox 20mm 6v 12v dc gear motor 20GA130 for medical machine
Model No.: 20GA130
Applications:
Beauty products
Medical instruments
Smart Robots
Features:
20mm spur gearbox
130 precious metal brush or carbon brush dc motor
Inline output shaft
8.2/1-1220/1 reduction ratio
3-8 gear stages
Threaded shaft available
Product Showcase:

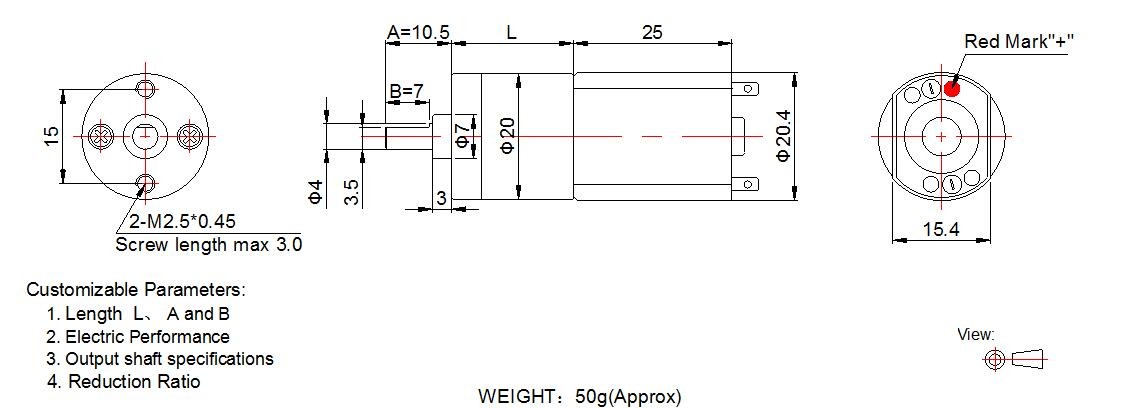

2D Drawing:
GEARBOX REDUCTION RATIO:
| Gearbox Length (mm) | Stage Number | Reduction Ratio | Rated Torque | Bearable Maximum Instant Torque |
| kg.cm |
| 14.7 | 3 | 8.2/1 | 12/1 | | | | | 0.6 | 1.5 |
| 16.2 | 4 | 20.4/1 | 25/1 | 28/1 | 31/1 | 35/1 | | 1.0 | 2.5 |
| 17.7 | 5 | 51/1 | 67/1 | 70/1 | 75/1 | 87/1 | | 1.5 | 3.0 |
| 19.2 | 6 | 128/1 | 173/1 | 187/1 | 217/1 | | | 2.0 | 5.0 |
| 20.7 | 7 | 266/1 | 319/1 | 438/1 | 467/1 | 542/1 | | 2.5 | 6.0 |
| 22.2 | 8 | 798/1 | 898/1 | 1085/1 | 1220/1 | | | 2.5 | 6.0 |
Motor Performance:
MODEL | REDUCTION RATIO | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | kg.cm | W | kg.cm | A |
| 20GA130-12-06590 | 12/1 | 3.0~7.0 | 6.0 | 590 | 0.07 | 467 | 0.26 | 0.2 | 0.96 | 0.6 | 1.00 |
| 20GA130-25-061150 | 25/1 | 3.0~7.0 | 6.0 | 1150 | 0.43 | 800 | 3.3 | 0.8 | 6.56 | 1.9 | 7.66 |
| 20GA130-75-0385 | 75/1 | 2.0~4.0 | 3.0 | 85 | 0.075 | 67 | 0.29 | 0.6 | 0.41 | 2.9 | 1.1 |
| 20GA130-467-1215 | 467/1 | 5.0~13.0 | 12.0 | 15 | 0.05 | 11.7 | 0.15 | 3.0 | 0.36 | 14.1 | 0.47 |
| 20GA130F-1085-1206 | 1085/1 | 5.0~13.0 | 12.0 | 6 | 0.05 | 5.4 | 0.09 | 3.0 | 0.00 | 28.3 | 0.47 |
Pls download the PDF document for referrence.
20GA130.pdf
FAQ
Q: What if i don't know the above data?
A: Please contact our saleman to handle,we'll answer your questions patiently.
Q: How to select a suitable motor?
A: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you have customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q: Do you have individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.
Q: Can I have samples for testing first?
A: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
