High Quality micro 16mm 3v 6v dc planetary gear motor for medical machine
Model No.: 16PA050
Applications:
Smart robots
Smart home appliance
Medical instruments
Electric Curtains
Features:
16mm metal planetary gearbox
Inline shaft
3v-12v voltage
050 metal brush or carbon brush dc motor
Encoder available
Special shaft available

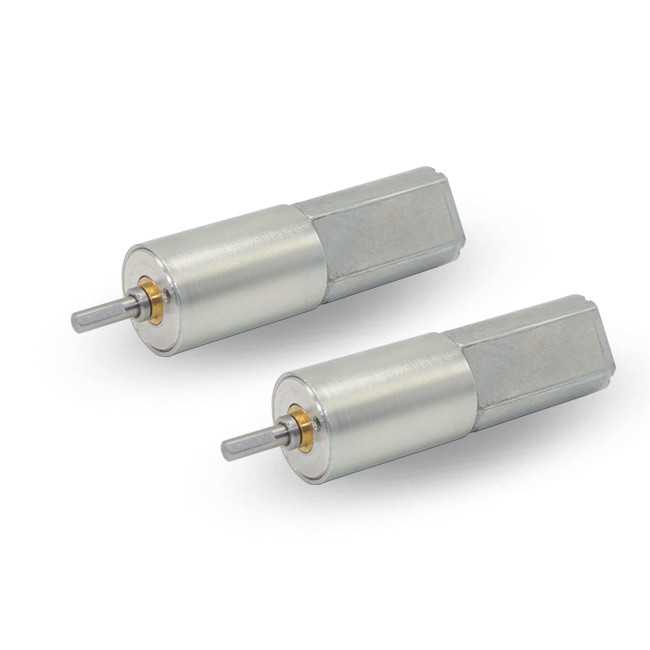

Product Showcase:

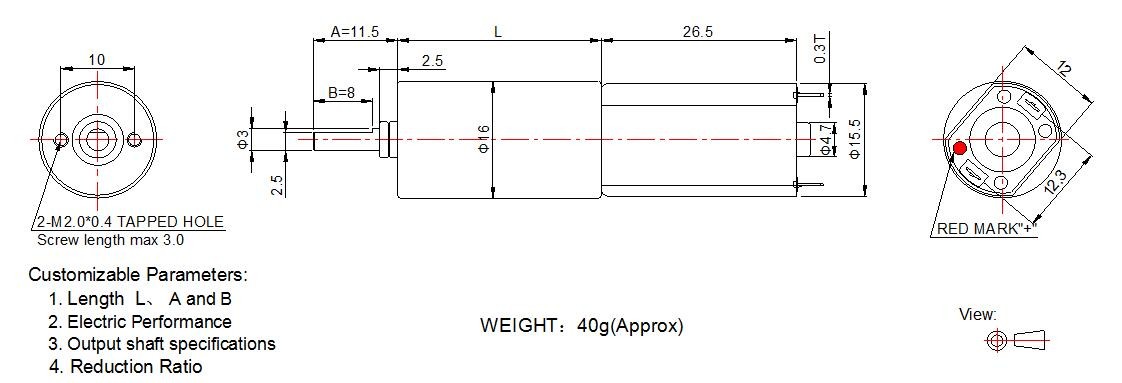

2D Drawing:
GEARBOX REDUCTION RATIO:
| Gearbox Length (mm) | Stage Number | Reduction Ratio | Rated Torque | Bearable Maximum Instant Torque |
| kg.cm |
| 16.4 | 1 | 3.5/1 | 4.8/1 | | | | | 0.6 | 1.5 |
| 22 | 2 | 12/1 | 17/1 | 23/1 | | | | 1.0 | 2.5 |
| 27.6 | 3 | 43/1 | 58/1 | 79/1 | 107/1 | | | 1.5 | 4.0 |
| 33.2 | 4 | 150/1 | 204/1 | 276/1 | 375/1 | 509/1 | | 2.0 | 6.0 |
| 38.8 | 5 | 713/1 | 967/1 | 1313/1 | 1782/1 | 2418/1 | | 3.0 | 8.0 |
Motor Performance:
MODEL | REDUCTION RATIO | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | kg.cm | W | kg.cm | A |
| 16PA050-12-06830 | 12/1 | 3.0~7.0 | 6.0 | 830 | 0.07 | 652 | 0.26 | 0.12 | 0.80 | 0.56 | 0.95 |
| 16PA050-58-06170 | 58/1 | 3.0~7.0 | 6.0 | 170 | 0.07 | 133 | 0.26 | 0.52 | 0.71 | 2.4 | 0.95 |
| 16PA050-150-12100 | 150/1 | 5.0~13.0 | 12.0 | 100 | 0.08 | 79 | 0.26 | 1.3 | 1.05 | 6.24 | 1 |
| 16PA050-967-1215 | 967/1 | 5.0~13.0 | 12.0 | 15 | 0.09 | 12.5 | 0.25 | 6 | 0.77 | 35.9 | 1 |
Pls download the PDF document for referrence.
16PA050.pdf
FAQ
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders
Q: What's your payment term?
A: For all our new customers, we will need 40% deposite, 60% paid before shipment.
Q: When will you reply after got my inquiries?
A: We will response within 24 hours once get your inquires.
Q: Do you have customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
