High Torque 12v 24v dc worm gear motor with 550 electric motor encoder
Model: 58GF550
Characters:
58*40mm metal worm gearbox
RS-550 carbon brush dc motor
Performance can be custom made
Shaft can be custom made such threaded shaft
3 or 5 slots rotor
Voltage Range 6-24V
52/1-700/1 reduction ratio
Tytical Application:
Robot toy
Valve
Medical Instruments
smart home appliance
Vending Machine

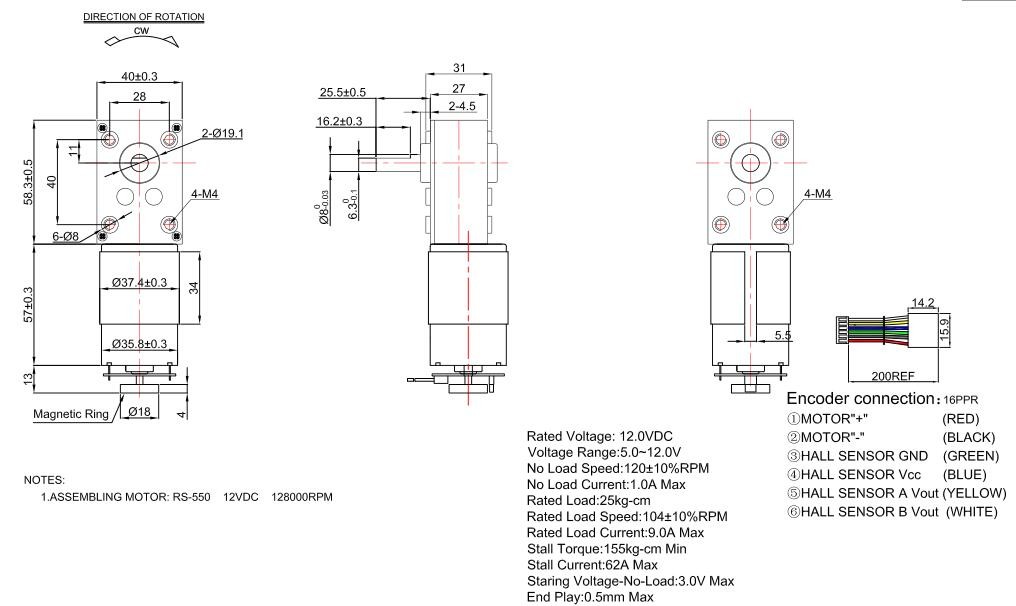

Outline Drawing:
Gearbox Reduction Ratio:
| Gearbox Length (mm) | Stage Number | Reduction Ratio | Rated Torque | Bearable Maximum Instant Torque |
| kg.cm |
| 58 x 40 x 21.5 | 3 | 52/1 | 105/1 | 202/1 | | | | 30.0 | 60.0 |
| 4 | 350/1 | 700/1 | | | | | 50.0 | 100.0 |
Motor Performance:
MODEL | REDUCTION RATIO | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | kg.cm | W | kg.cm | A |
| 58GF550-52-12240 | 52/1 | 5.0~13.0 | 12.0 | 240 | 0.6 | 212 | 5.5 | 10.0 | 21.74 | 89.0 | 41.5 |
| 58GF550-104-12120 | 104/1 | 5.0~13.0 | 12.0 | 120 | 0.6 | 104 | 6.0 | 25.0 | 26.67 | 189.0 | 41.5 |
| 58GF555-202-2432 | 202/1 | 5.0~25.0 | 24.0 | 32 | 0.17 | 28 | 1.1 | 28.0 | 8.04 | 213.0 | 7.2 |
| 58GF555-350-2418 | 350/1 | 5.0~25.0 | 24.0 | 18 | 0.17 | 15.8 | 1.1 | 40.0 | 6.48 | 331.1 | 7.2 |
| 58GF555-700-2409 | 700/1 | 5.0~25.0 | 24.0 | 9 | 0.17 | 8.1 | 0.9 | 65.0 | 5.40 | 652.0 | 7.2 |
The Shaft and the motor performance such as voltage and speed can be custom made.
Encoder information:
| Supply Voltage | Operating Temperature | Hall Response Frequence | Output Waveform | Base Pluse Count |
| 5-24V | -40-140℃ | 100kHz | Quadrature Square/Sinusoidal | 16/12ppr |
| Outline Diameter | Magnet Hole Diameter | Mounting Hole Distance | Red Wire | Black Wire | Green Wire | Blue Wire | Yellow Wire | Whie Wire |
| 35mm | 5.0mm | 27mm | Power Vcc | Power GND | Hall Sensor GND | Hall Sensor Vcc | Sensor Output A | Sensor Output B |
Note: The pin arrangements might be different with different model. The wire length can be custom made.
RFQ
Q: What is your MOQ?
A: Generally, the MOQ is 1000 pieces for our motors. But we can support you with small quantity for the first trial order .
Q: Do you have motors in stocks?
A: No, all motors are made according to the customers' requirements, so it is difficult for us to make in stocks.
Q: Do you accept customize?
A: Sure,as we have a strong design team,any problems will get our technical answer.
Q: What kind of data do i neet to provide if i want to order?
A: Please kindly tell us your voltage,speed,torque and overall dimension.
