High quality micro 3 volt coreless brush dc motor 6mm diameter 15mm length for electric toys
Model No.: 615-Q
Features:
Precious metal brush
Oil-impregnated bearing
Plastic end cap
Eccentric wheel available
Description:
Body Diameter: 6mm
Body Length: 15mm
Shaft Diameter: 0.8mm
Shaft Length: TBD

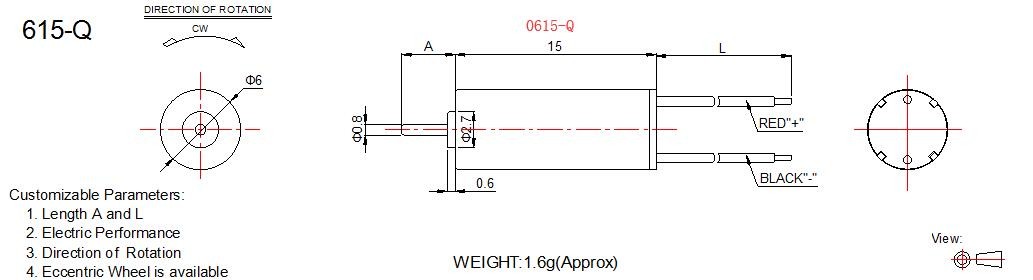

Outline Drawing:
Motor Performance:
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | mN.m | W | g.cm | mN.m | A |
| 0615-Q-1 | 1.2~2.0 | 1.5 | 28000 | 0.05 | 22100 | 0.2 | 0.62 | 0.06 | 0.14 | 3.10 | 0.30 | 0.78 |
| 0615-Q-2 | 1.5~3.5 | 3.0 | 37000 | 0.032 | 30100 | 0.14 | 0.75 | 0.07 | 0.23 | 4.05 | 0.40 | 0.61 |
| 0615-Q-3 | 2.0~4.0 | 3.7 | 32500 | 0.023 | 26600 | 0.1 | 0.71 | 0.07 | 0.19 | 3.80 | 0.37 | 0.41 |
The shaft length and motor performance can be custom made, such as the voltage and speed.
Pls download the PDF Spec for referrence.
6mm coreless dc motor.pdf

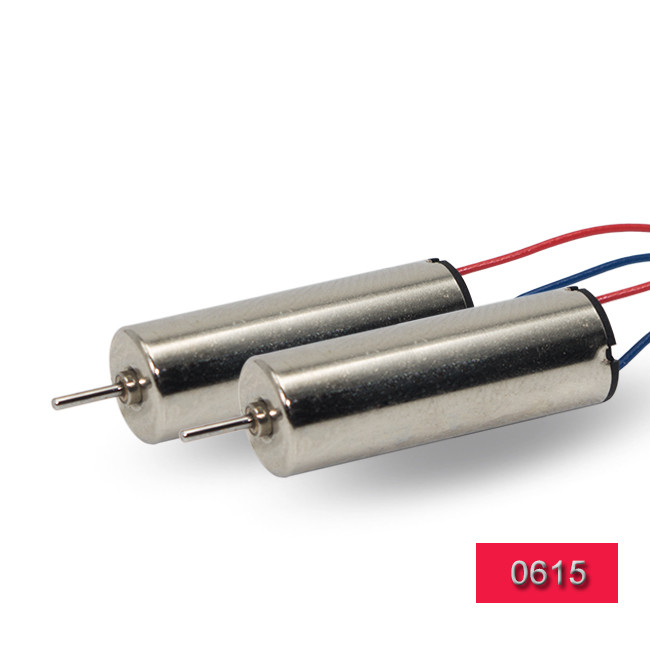

Product Showcase:
Competitive Advantages:
Fast reponse within 24h
Professional international sales team with smooth communication
100% inspection during production
Short lead time
Small trial order available
FAQ
Q: How do you make sure motor quality?
A: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
Q: Do you have motors in stocks?
A: No, all motors are made according to the customers' requirements, so it is difficult for us to make in stocks.
Q: What is the payment terms?
A: T/T, Western Union, Paypal, etc, easy for your business.
Q: What kind of data do i neet to provide if i want to order?
A: Please kindly tell us your voltage,speed,torque and overall dimension.
Q: What if i don't know the above data?
A: Please contact our saleman to handle,we'll answer your questions patiently.
