6mm Diameter Coreless DC Motor / Mini DC Motor 3v 0610-Q For Micro Actuator

Shenzhen Tronsun Motor Co., Ltd
Contact Now

6mm Diameter Coreless DC Motor / Mini DC Motor 3v 0610-Q For Micro Actuator

  • 1
  • 2

Brand Name : Tronsun Motor

Model Number : 0610-Q

Certification : RoHS

Place of Origin : China

MOQ : 100pcs

Price : Negotiation

Payment Terms : T/T, Paypal

Supply Ability : 500kpcs/month

Delivery Time : 25-35 days

Packaging Details : TBD

Product Name : 6mm coreless dc motor

Voltage Range : 1.5v-3v

Diameter : 6mm

Length : 10mm

Rotation Direction : CW/CCW

Material : RoHS Material

Usage : Lock

Shaft : Stainless steel

Contact Now

Low cost 6mm coreless brush dc motor 1.5v 3v mini dc motor for micro actuator

Model No.: 0610-Q

Applications:

Toys

Planteary gearbox

Smart lock

Features:

Permanent magnet

Precious metal brush

1.5-3v rated voltage

0.3-0.5g.cm load

10000-30000rpm

We can provide gears on the shaft

Size Description:

Body Diameter: 6mm

Body Length: 10.2mm

Shaft Diameter: 0.8mm

Shaft Length: TBD

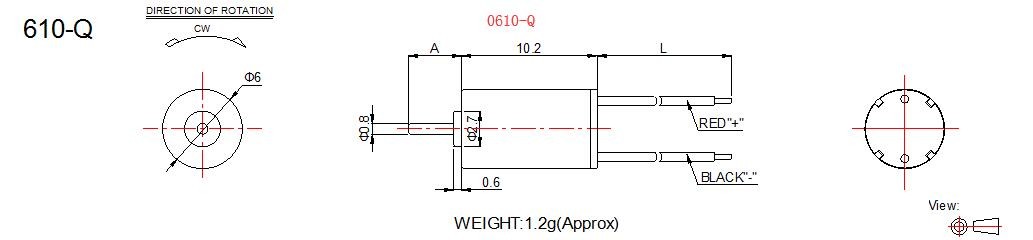

Outline Drawing:

6mm Diameter Coreless DC Motor / Mini DC Motor 3v 0610-Q For Micro Actuator

Motor Performance:


MODEL
VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A g.cm mN.m W g.cm mN.m A
0610-Q-1 1.2~2.0 1.5 23000 0.04 17020 0.114 0.39 0.04 0.07 1.50 0.15 0.325
0610-Q-2 2.0~4.0 3.0 22000 0.021 15400 0.049 0.36 0.04 0.06 1.20 0.12 0.115
0610-Q-3 2.0~4.0 3.0 25300 0.02 18500 0.053 0.31 0.03 0.06 1.18 0.12 0.14

The shaft length and motor performance can be custom made, such as the voltage and speed.

Pls download the PDF Spec for referrence.

6mm coreless dc motor.pdf

Product Showcase:

6mm Diameter Coreless DC Motor / Mini DC Motor 3v 0610-Q For Micro Actuator

Advantages:

Fast reply within 24h

100% full inspection of motor

Special gears and eccentric wheel on the shaft

Performance customization

Sample order available

FAQ


Q: Do you accept customize?
A: Sure,as we have a strong design team,any problems will get our technical answer.

Q: What kind of data do i neet to provide if i want to order?
A: Please kindly tell us your voltage,speed,torque and overall dimension.

Q: What if i don't know the above data?
A: Please contact our saleman to handle,we'll answer your questions patiently.

Q: How to select a suitable motor?
A: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
