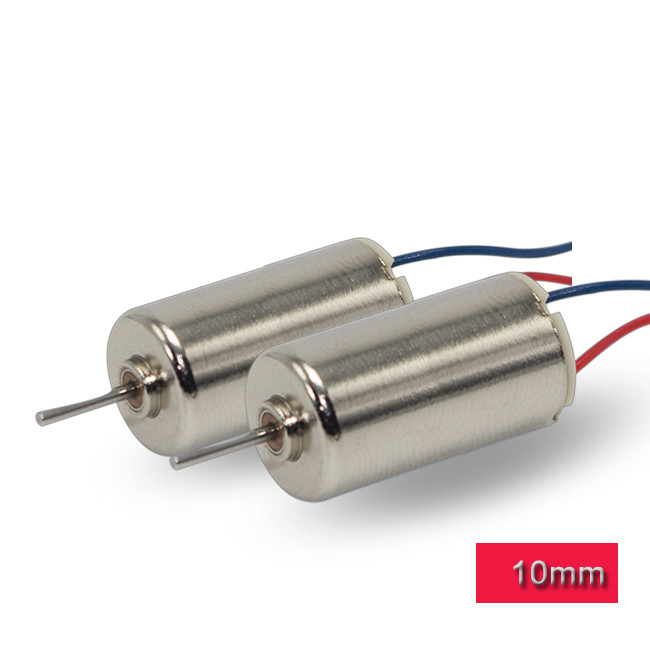

High Torque high speed 12v coreless dc motor 25000rpm 10mm diameter 20mm length brush coreless dc motor for robot
Model No.: 1020-Q
Applications:
Smart home appliance
Smart lock
Light
Features:
Metal brush dc motor
10mm body diameter
Metal housing with plastic end cap
1.0mm stainless steel shaft
Oil-impregnated bearing

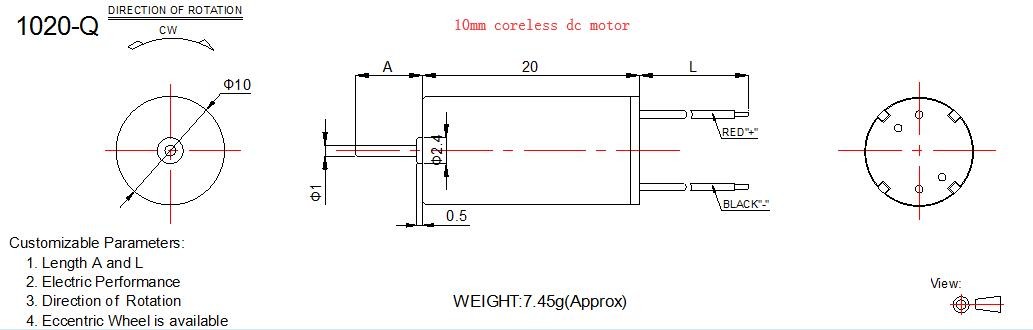

Outline Drawing:
Motor Performance:
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | mN.m | W | g.cm | mN.m | A |
| 1020-Q-1 | 1.5~4.0 | 3.0 | 14500 | 0.09 | 11590 | 0.36 | 4.9 | 0.48 | 0.58 | 24.50 | 2.40 | 1.43 |
| 1020-Q-2 | 3.0~14.0 | 12.0 | 26500 | 0.11 | 20240 | 0.356 | 10.6 | 1.04 | 2.20 | 45.00 | 4.42 | 1.15 |
The shaft length and motor performance can be custom made, such as the voltage and speed.
Pls download the PDF Spec for referrence.
10mm coreless dc motor.pdf
Product Showcase:
Why Us
100% inspection during production
Fast reply within 24h
Skilled international sales team
Smooth communication
Small trial order and sample available
Quick lead time.
FAQ
Q: Can you make motors customized?
A: Yes, we can and welcome.
Q: What's the deliverly time of sample and the cargo?
A: For regular specification, it needs about 3-5 working days for samples, and 15-20 working days for the cargo; For customized specification, it needs about 7-10 working days for samples, 25-30 working days for the cargo.
Q: What is the payment terms?
A: T/T, Western Union, Paypal, etc, easy for your business.
Q: What information you need provide if you want we recommend motors for you?
A: You need provide the basic specification of the motor, like: Dimesnion, Application, Voltage, Speed and Torque. If you have samples or drawings, it's better you can send it to us.
Q: How do you make sure motor quality?
A: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders
